MSI MPG X570 GAMING EDGE WIFI

MSI MPG X570 GAMING EDGE WIFI AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $152.63

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG X570 GAMING EDGE WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics Desktop Processors for AM4 socket
On-board Wi-Fi 5 (802. 11ac) with MU-MIMO support
AUDIO BOOST 4 technology with NAHIMIC 3 software enhancement for immersive experiences

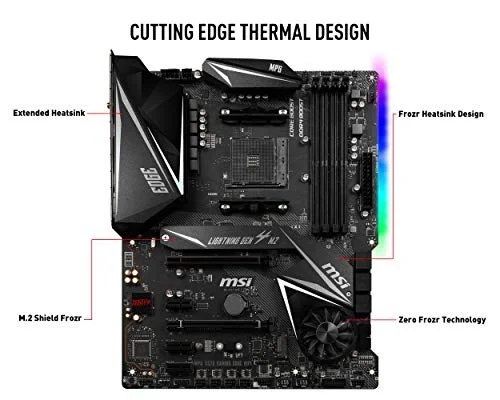

FROZR Heatsink with patented fan design - Propeller Blade Technology and double ball bearings
Pre-Installed IO Shielding is grounded and protects the IO ports from potential electrostatic discharge damage from the external environment

Manufacturer	MSI
Model Number	MPG X570 GAMING EDGE WIFI
Launch Date	July 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5

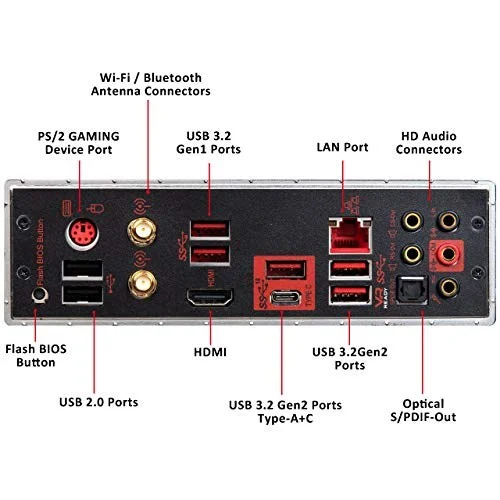

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG X570 GAMING EDGE WIFI
SKU Code	MPG X570 GAMING EDGE WIFI
GTIN / EAN	824142189528
