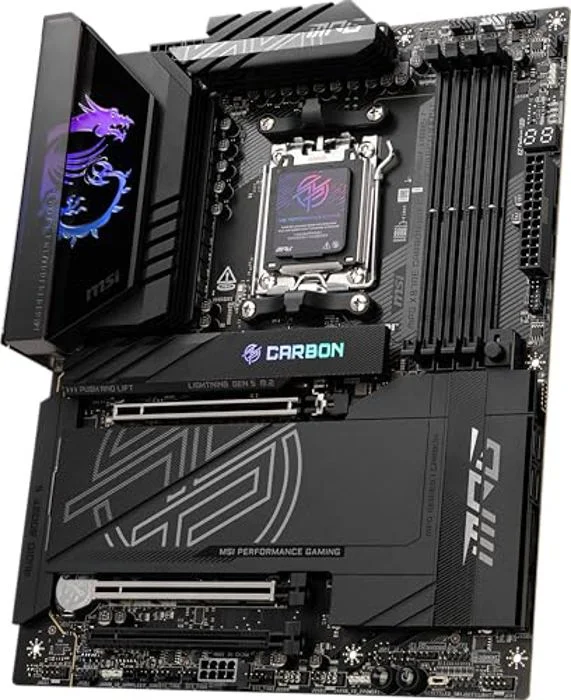

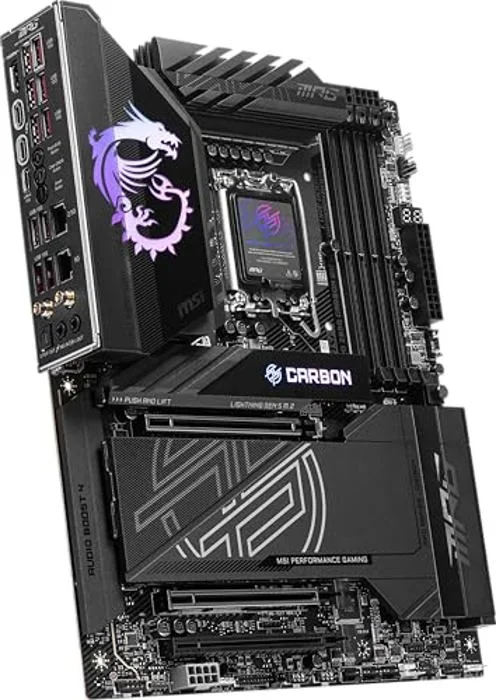

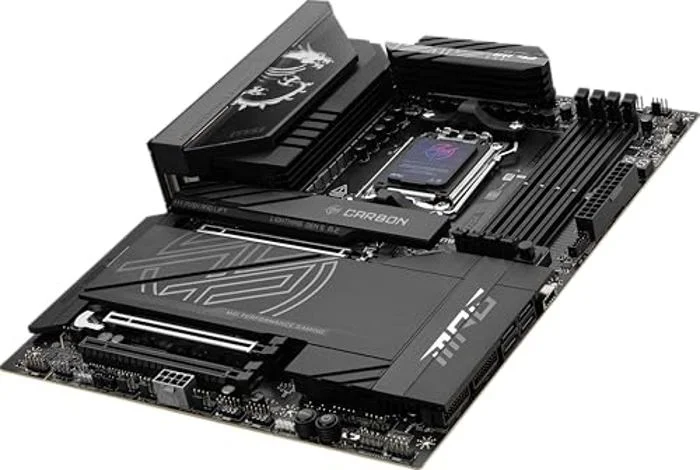

MSI MPG X870E Carbon WiFi

MSI MPG X870E Carbon WiFi AM5 ATX DDR5 256 GB Motherboard

MSI Motherboard $439.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX870E

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG X870E Carbon WiFi is a ATX motherboard for AM5. It supports DDR5 memory up to 8400 MT/s (OC).

Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
Premium Thermal Design: Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr
EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot
Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed
Dual LAN: Dual premium network solution for both Intranet and Internet

Manufacturer	MSI
Model Number	MPG X870E CARBON WIFI 7E49-001R
Launch Date	September 2024
CPU Socket	AM5
Chipset Model	Intel X870E
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key, 2280 / 22110 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)

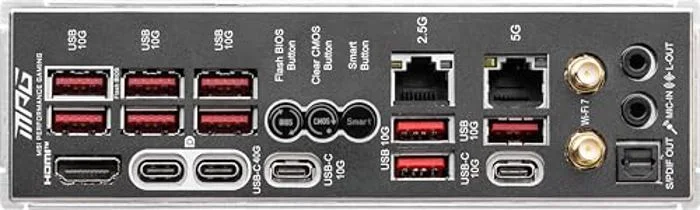

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG X870E CARBON WIFI
SKU Code	MPG X870E CARBON WIFI
GTIN / EAN	824142382219
