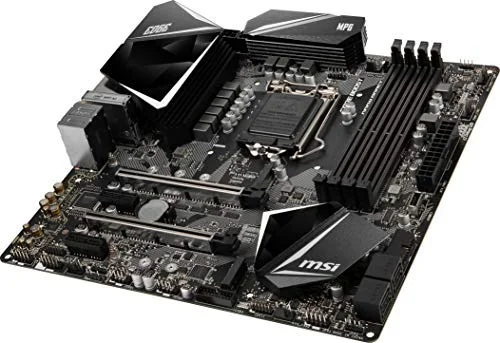

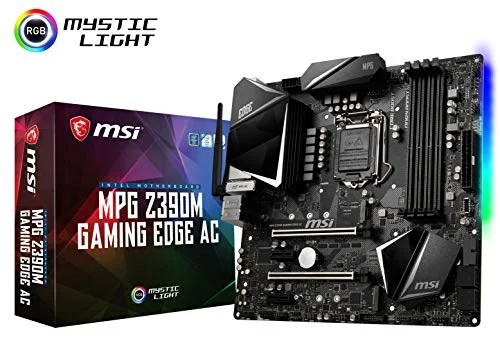

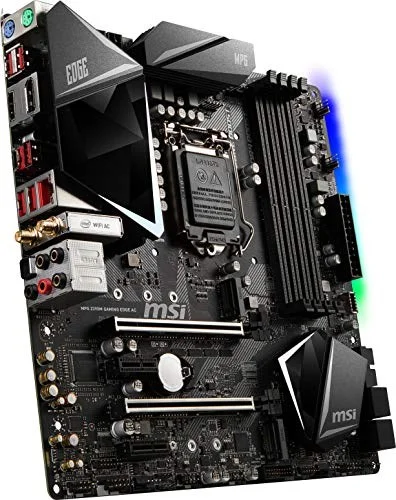

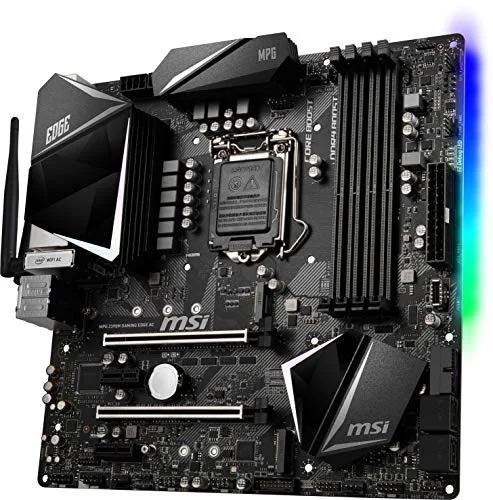

MSI MPG Z390M GAMING EDGE AC

MSI MPG Z390M GAMING EDGE AC LGA1151 Micro-ATX DDR4 64 GB Motherboard

MSI Motherboard $264.16

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG Z390M GAMING EDGE AC is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 4500 MT/s (OC).

Supports 9th i9-9900K, i7-9700K, i5-9600K and 8th Generation Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports dual channel DDR4 Memory, up to 4500(OC) MHz
2x TURBO M.2, Intel Optane Memory Ready, Turbo USB 3.1 GEN2
MYSTIC LIGHT: 16.8 million colors / 29 effects. Connect RGB or RAINBOW LED strips with addressable headers and create an RGB gaming PC. Control Mystic Light SYNC enabled products
Built for high-performance gaming - Extended heatsink, micro-ATX (mATX) form factor ready for multi-GPU

Manufacturer	MSI
Model Number	MPG Z390M GAMING EDGE AC
Launch Date	N/A
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4400 / DDR4-4500 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5

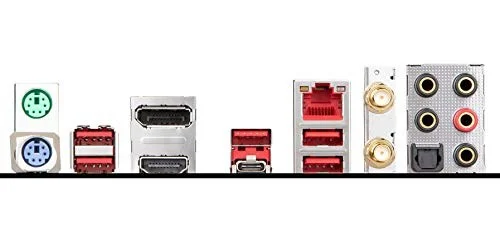

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG Z390M GAMING EDGE AC
SKU Code	MPG Z390M GAMING EDGE AC
GTIN / EAN	824142171271
