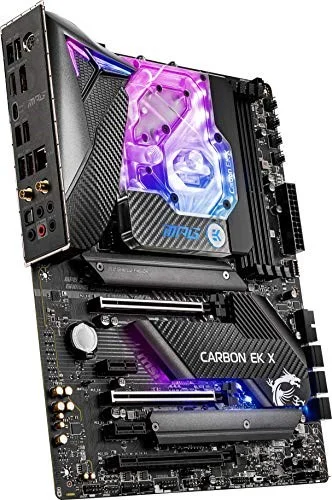

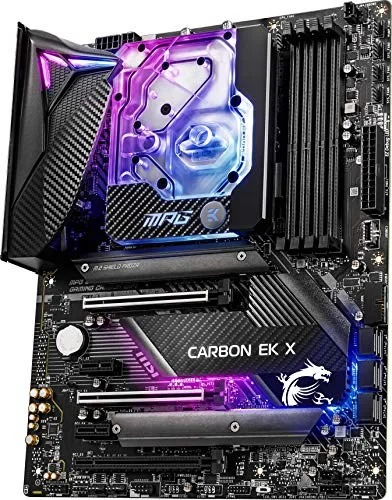

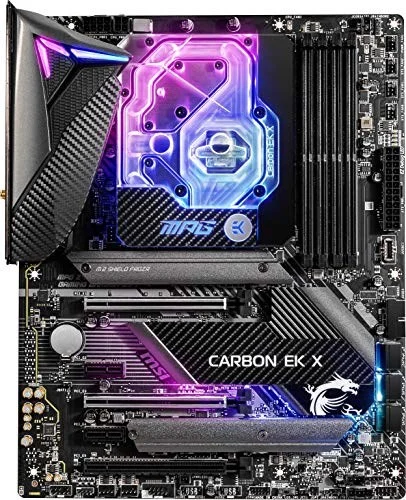

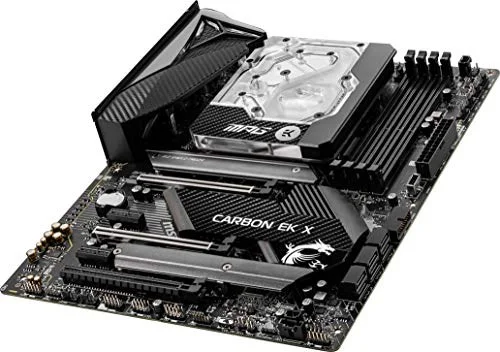

MSI MPG Z490 Carbon EK X

MSI MPG Z490 Carbon EK X LGA1200 ATX DDR4 128 GB Motherboard

MSI Motherboard $425.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG Z490 Carbon EK X is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).

Supports 10Th Gen Intel Core / Pentium Celeron Processors For LGA 1200 Socket
Supports DDR4 Memory, Up To 5000(OC) Mhz
Ready 4 The Future: Support Lightning Gen 4 Solution For The Future
CPU + VRM Water Cooling: A Custom-Designed EK Monoblock That Offers Pristine Cooling For Both The CPU And VRM Power Delivery Section
Mystic Light: 16.8 Million Colors / 29 Effects Controlled In One Click. Mystic Light Extension Supports Both RGB And Rainbow LED Strip

Manufacturer	MSI
Model Number	MPG Z490 CARBON EK X 7C73-008R
Launch Date	August 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

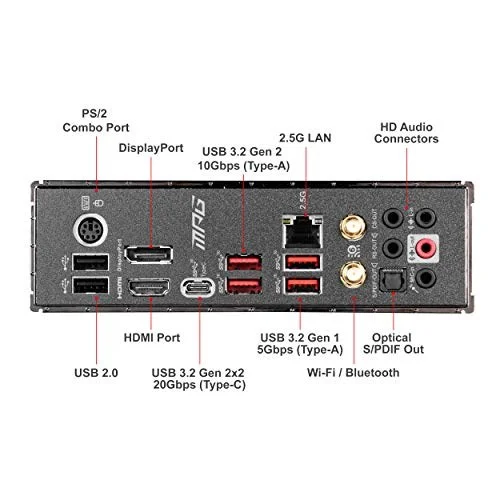

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG Z490 CARBON EK X
SKU Code	MPG Z490 CARBON EK X
GTIN / EAN	824142220122
