MSI MPG Z590 Gaming Plus

MSI MPG Z590 Gaming Plus LGA1200 ATX DDR4 128 GB Motherboard

MSI Motherboard $129.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

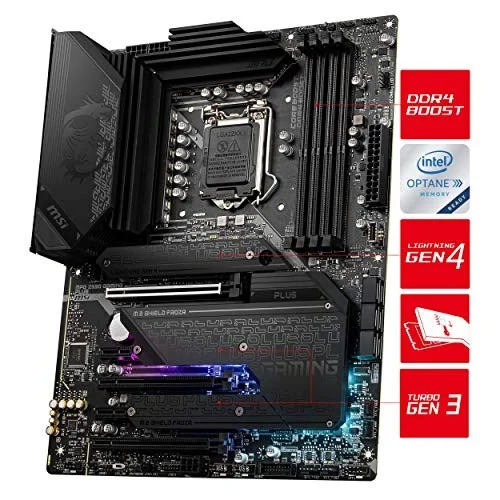

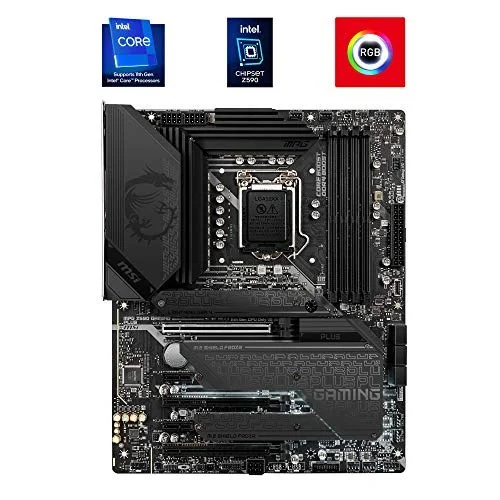

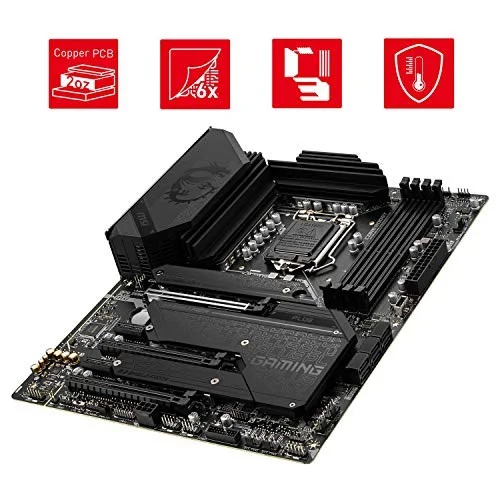

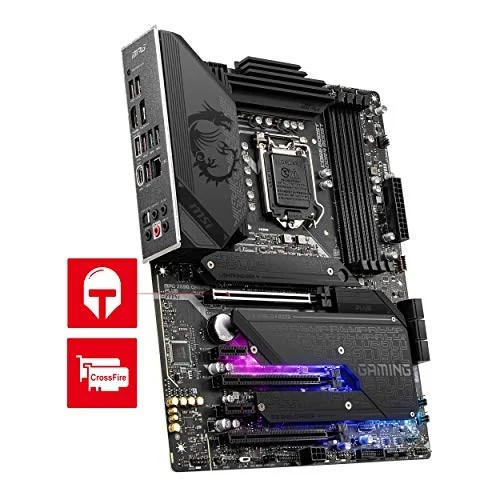

The MSI MPG Z590 Gaming Plus is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5600 MT/s (OC).

Supports 11th and 10th Gen Intel Core/Pentium/Celeron processors for LGA 1200 Socket
Supports DDR4 Memory, up to 5333(OC) MHz
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Manufacturer	MSI
Model Number	MPG Z590 GAMING PLUS 7D07-002R
Launch Date	February 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 / DDR4-5066 / DDR4-5133 / DDR4-5333 / DDR4-5600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

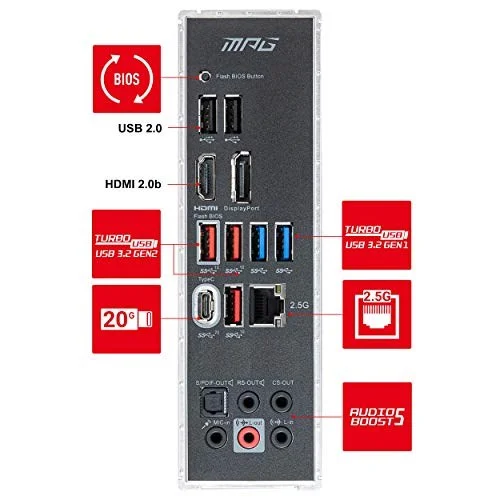

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG Z590 GAMING PLUS
SKU Code	MPG Z590 GAMING PLUS
GTIN / EAN	824142242872
