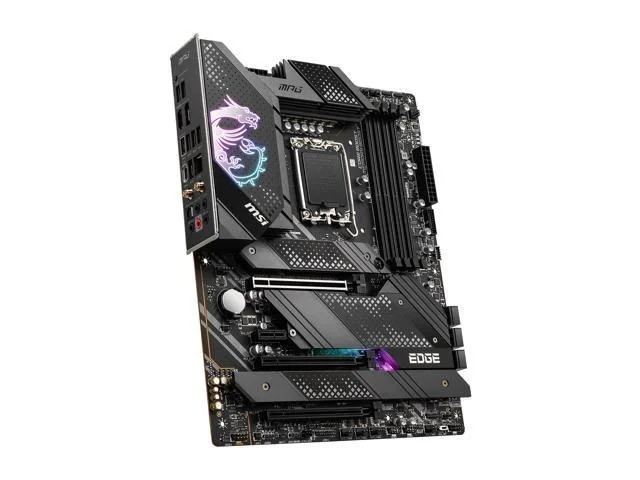

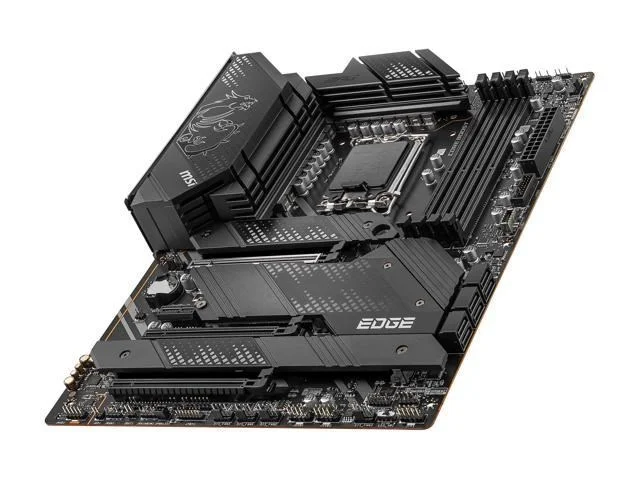

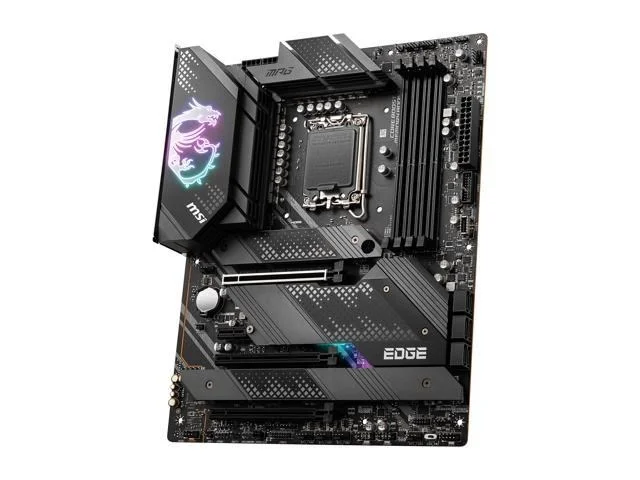

MSI MPG Z690 EDGE WIFI

MSI MPG Z690 EDGE WIFI LGA1700 ATX DDR5 192 GB Motherboard

MSI Motherboard $181.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG Z690 EDGE WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6600 MT/s (OC).

MSI MPG Z690 EDGE WIFI DDR5 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard Memory Standard: DDR5 6400+ (OC) Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC4080 Codec PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 PCI Express 3.0 x16: 2 x PCI Express 3.0 x16 Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core Processors Supports Intel Pentium Gold / Celeron Processors

Manufacturer	MSI
Model Number	MPG Z690 EDGE WIFI
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG Z690 EDGE WIFI
SKU Code	MPG Z690 EDGE WIFI
GTIN / EAN	824142270332
