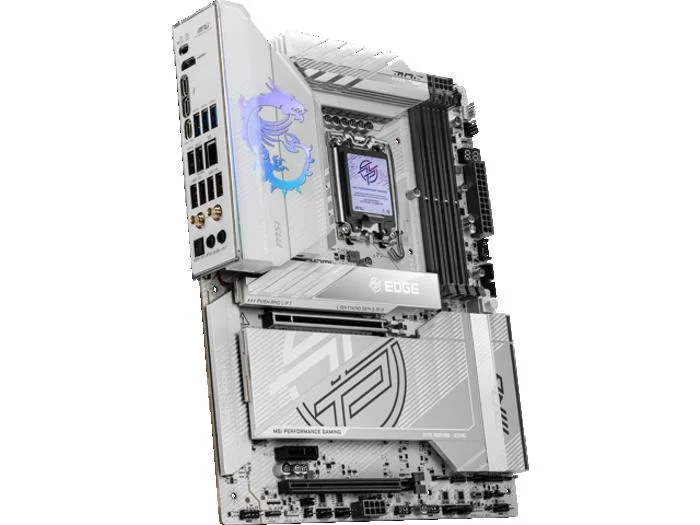

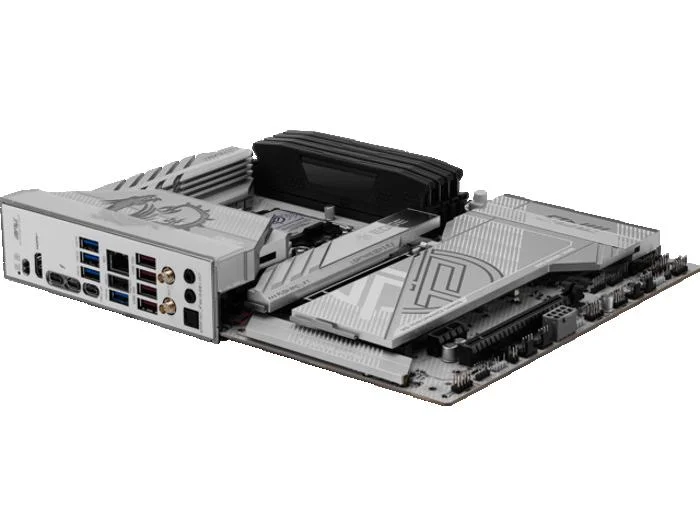

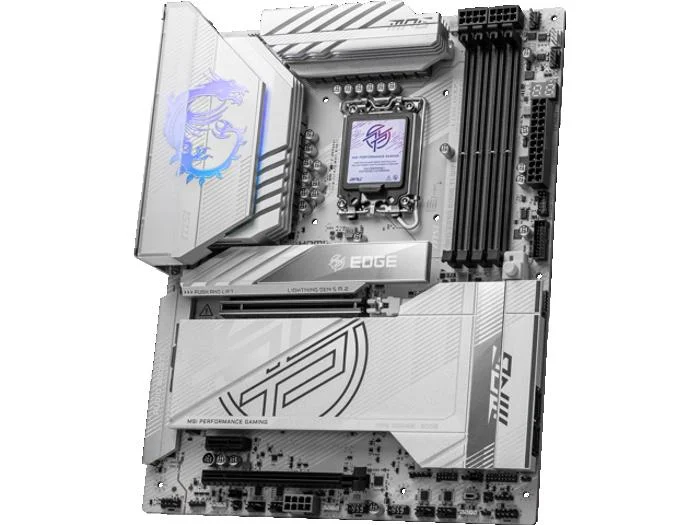

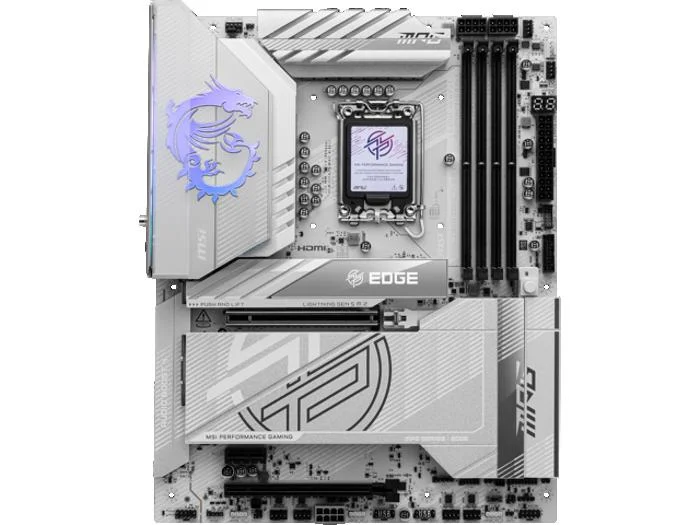

MSI MPG Z890 EDGE TI WIFI

MSI MPG Z890 EDGE TI WIFI LGA1851 ATX DDR5 256 GB Motherboard

MSI Motherboard $309.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetZ890

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG Z890 EDGE TI WIFI is a ATX motherboard for LGA1851. It supports DDR5 memory up to 9200 MT/s (OC).

MSI MPG Z890 EDGE TI WIFI7 GAMING MOTHERBOARD Brand: MSI CPU Socket Type: LGA 1851 Chipset: Intel Z890 Form Factor: ATX Maximum Memory Supported: 256GB Channel Supported: Dual Channel PCI Express x4: PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI Express x1: PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) * PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4

Manufacturer	MSI
Model Number	MPG Z890 EDGE TI WIFI 7E19-001R
Launch Date	October 2024
CPU Socket	LGA1851
Chipset Model	Intel Z890
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 / DDR5-8400 / DDR5-8600 / DDR5-9200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)

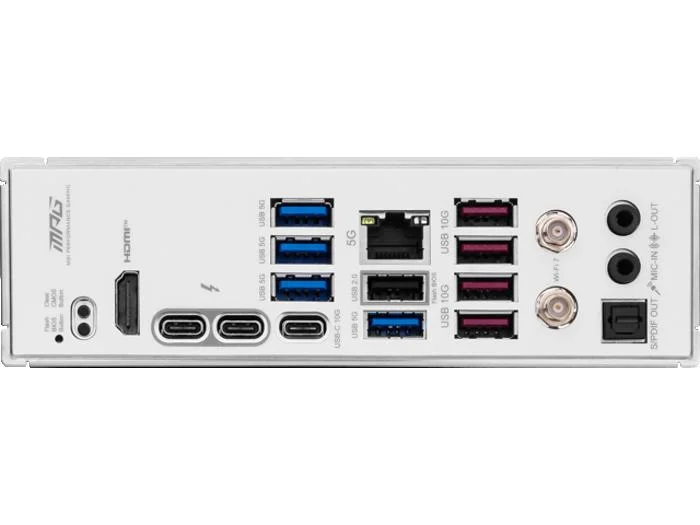

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG Z890 EDGE TI WIFI
SKU Code	MPG Z890 EDGE TI WIFI
GTIN / EAN	824142383773
