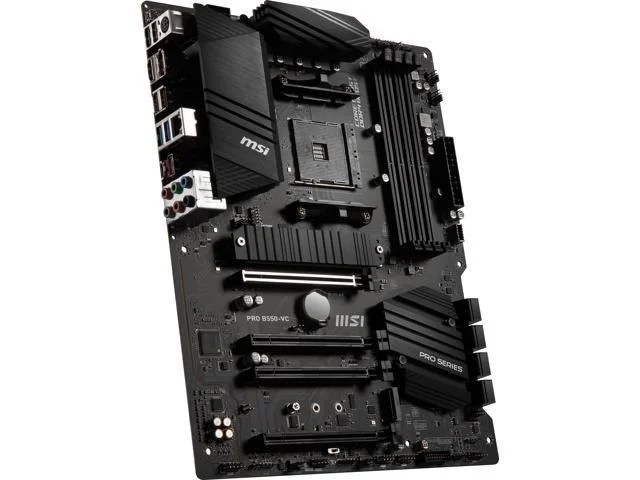

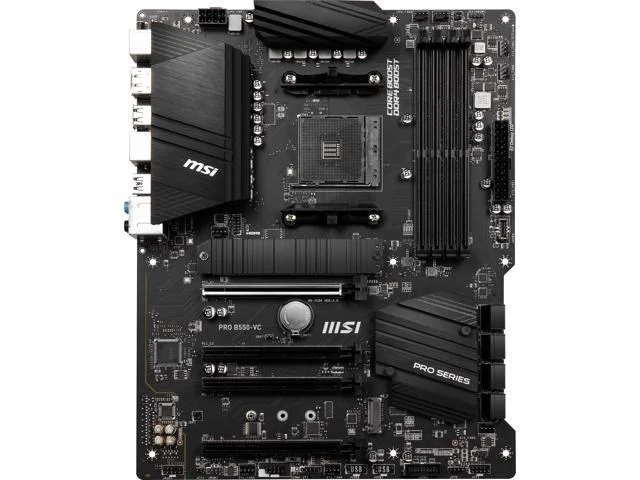

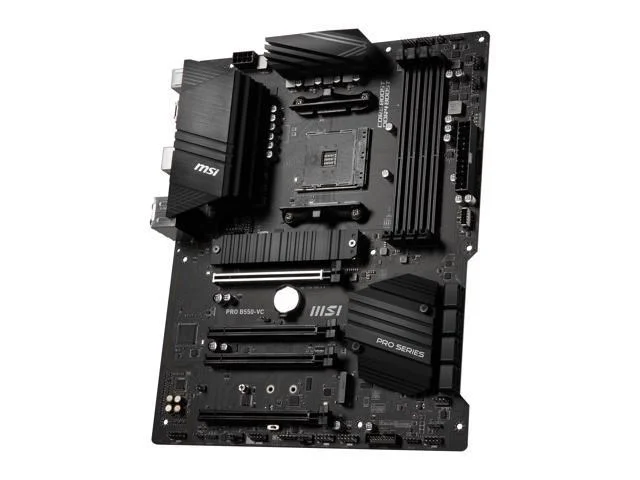

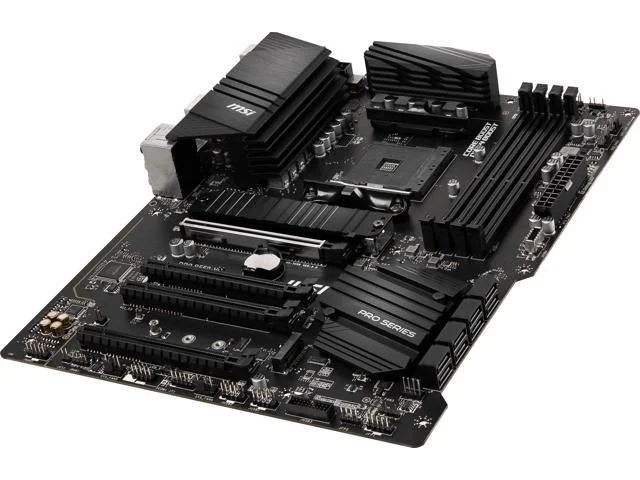

MSI PRO B550-VC

MSI PRO B550-VC AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $141.59

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI PRO B550-VC is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

MSI PRO PRO B550-VC AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard Number of Memory Slots: 4x288pin (DDR4) Memory Standard: DDR4 4400+ / 4266 / 4133 /4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC 1DPC 1R Max speed 4800 1DPC 2R max speed 3866 2DPC 1R max speed 4000 2DPC 2R max speed 3600 PCI Express 3.0 x16: 3 x PCI Express 3.0 x16* * PCI_E2 & PCI_E4 support x1 mode. * PCI_E3 supports x4 mode. * When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable. Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC892/ALC897 Audio Channels: 7.1 Channels Max LAN Speed: 10/100/1000Mbps Maximum Memory Supported: 128GB

Manufacturer	MSI
Model Number	PRO B550-VC
Launch Date	N/A
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

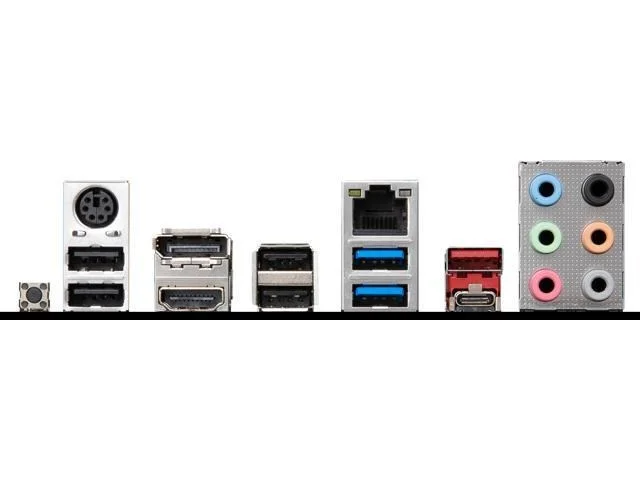

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRO B550-VC
SKU Code	PRO B550-VC
GTIN / EAN	824142299241
