MSI PRO B550M-P GEN3

MSI PRO B550M-P GEN3 AM4 Micro-ATX DDR4 128 GB Motherboard

MSI Motherboard $169.5

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

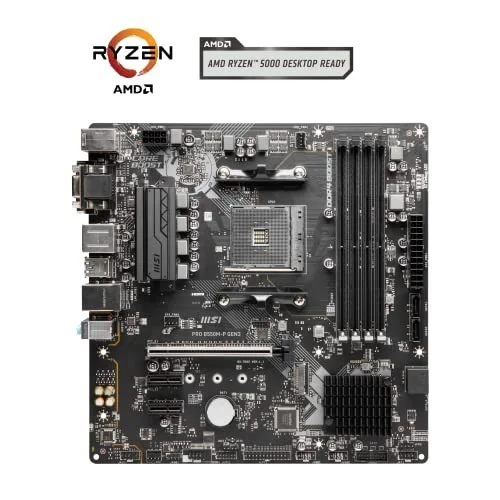

The MSI PRO B550M-P GEN3 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4266 MT/s (OC).

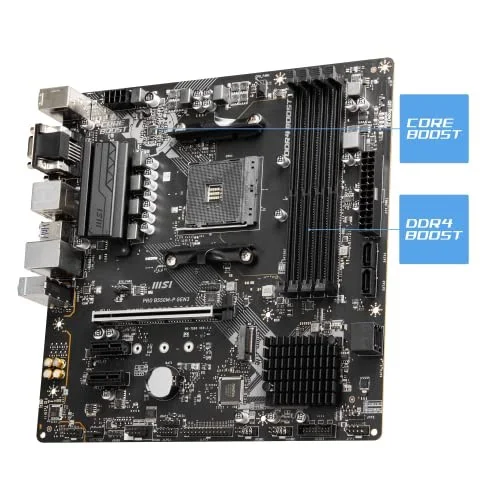

RYZEN 5000 READY, RELIABLE PERFORMANCE - The PRO B550M-P GEN3 is a compact micro-ATX (mATX) motherboard outfitted with the latest AMD B550 chipset (AM4, Ryzen 5000 ready); The VRM features MSI Core Boost technology for improved stability & performance
COOLING FEATURES - The VRM & chipset heatsinks provide passive cooling; System cooling settings can be adjusted both in BIOS or through MSI Center software
DDR4 MEMORY, PCIe 3.0 x16 SLOT - 4 x DDR4 DIMM slots feature DDR4 Boost isolated circuitry for overclocking (1DPC 1R, 4400+ MHz); A PCIe 3.0 x16 Steel Armor slot supports heavy model graphics cards

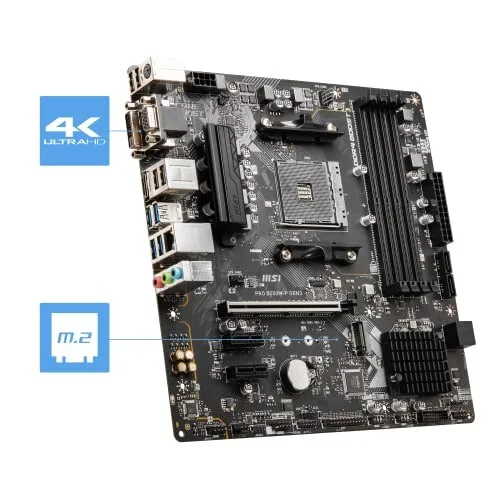

GEN3 M.2 CONNECTOR - Storage includes a M.2 Gen3 x4 32Gb/s slot (supports SATA 6Gb & 2242, 2260, 2280 storage devices)

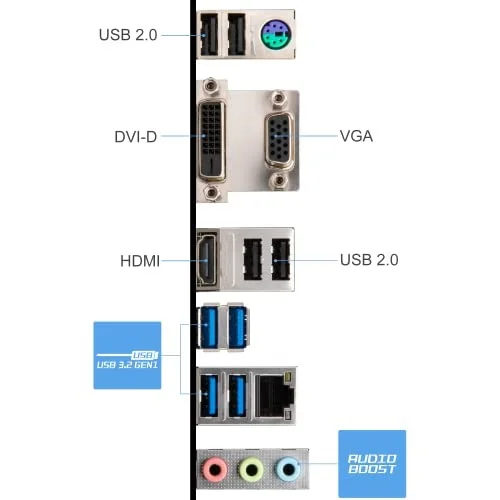

WELL CONNECTED - Network hardware includes a Gigabit LAN controller; Rear ports include 2 x USB 3.2 Gen 1 Type-A (5Gb/s), 7.1 HD Audio with Audio Boost, HDMI 1.4 (4K/30Hz), DVI-D, and legacy VGA

Manufacturer	MSI
Model Number	PRO B550M-P GEN3 7D95-001R
Launch Date	January 2022
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRO B550M-P GEN3
SKU Code	PRO B550M-P GEN3
GTIN / EAN	4719072962234
