Product Overview

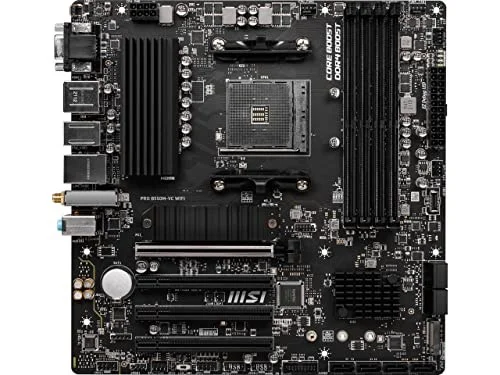

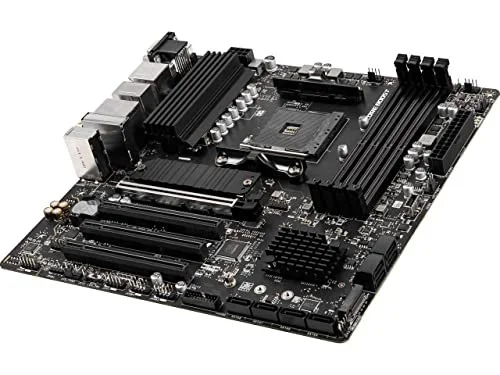

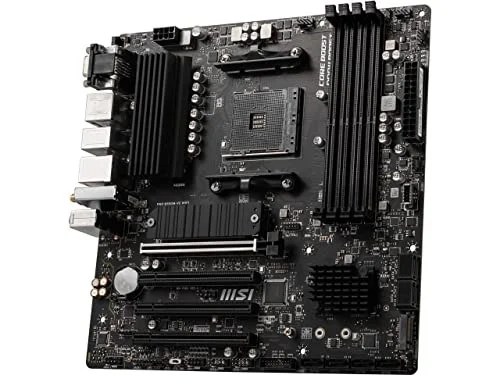

MSI PRO B550M-VC WiFi

MSI PRO B550M-VC WiFi AM4 Micro-ATX DDR4 128 GB Motherboard

MSI Motherboard $106.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4
ChipsetB550
Form FactorMicro-ATX
MemoryDDR4
Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller Shipping Price
-
-
-
N/A
$12.99

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The MSI PRO B550M-VC WiFi is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost

Specifications

Manufacturer MSI
Model Number PRO B550M-VC WIFI
Launch Date September 2022
CPU Socket AMD Socket AM4
Chipset Model Intel B550
Board Size / Form Factor Micro-ATX
Supported Memory Type DDR4
DIMM Slots 4
Maximum RAM Capacity 128 GB
Valid DDR4 Speeds DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support No
Expansion Slots (PCIe) 4 × PCIe x16
PCIe x16 (Qty) 4
PCIe x4 (Qty) 0
PCIe x1 (Qty) 0
M.2 Slot Count 3 × M.2
M.2 Device Compatibility 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports 8 × SATA 6Gbps
SATA Express Ports 0
Wired Networking (LAN) N/A
Onboard Wi-Fi Yes
Wi-Fi Standard 6E (802.11ax, 6 GHz)
Rear-Panel USB USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers 0
Internal USB 3.2 Gen 2 Headers 1
Internal USB 3.2 Gen 1 Headers 1
Internal USB 2.0 Headers 2
NVIDIA SLI No
AMD CrossFire No
RAID Capability Yes
Back-Connect Layout No
Manufacturer Part Number (MPN) PRO B550M-VC WIFI
SKU Code PRO B550M-VC WIFI
GTIN / EAN 824142299258
Market Trend

Price History

A cleaner look at how this part has moved over the past year.

12 data points 12 months $
Tracks available price points within the last 12 months.
