Product Overview

MSI PRO B660M-A WiFi DDR4

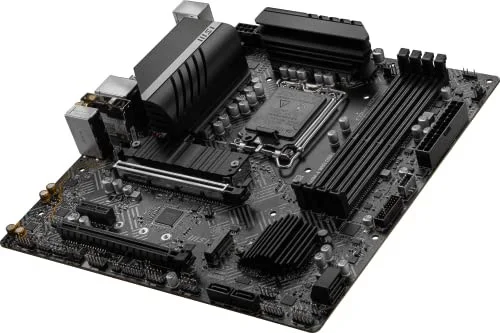

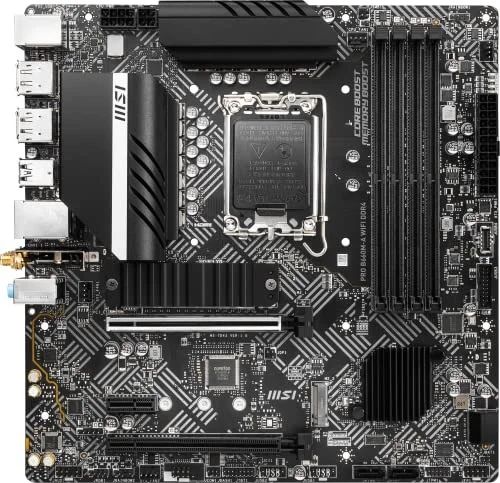

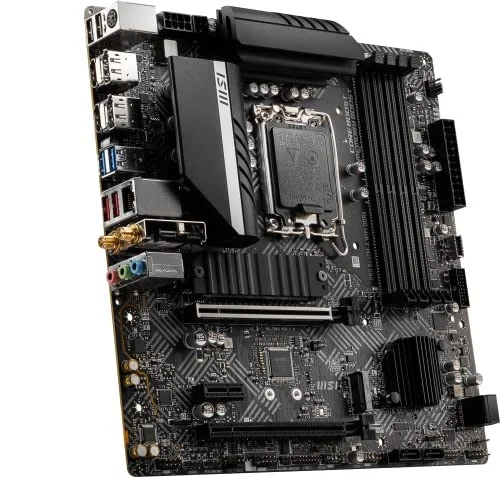

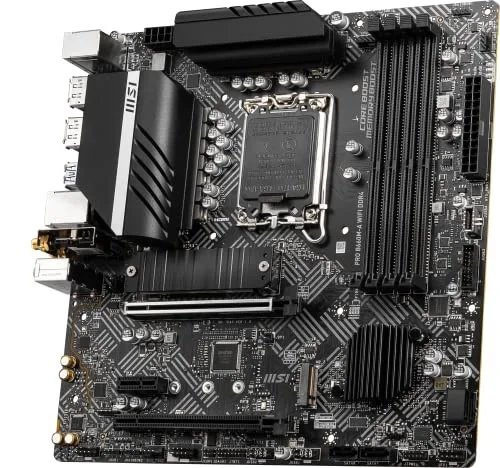

MSI PRO B660M-A WiFi DDR4 LGA1700 Micro-ATX DDR4 128 GB Motherboard

MSI Motherboard $149.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700
ChipsetB660
Form FactorMicro-ATX
MemoryDDR4
Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller Shipping Price
-
-
N/A
-
N/A
Free

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The MSI PRO B660M-A WiFi DDR4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4800 MT/s (OC).

  • Supports 12th Gen Intel Core Pentium Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

Specifications

Manufacturer MSI
Model Number PRO B660M-A WIFI DDR4 7D43-002R
Launch Date January 2022
CPU Socket LGA1700
Chipset Model Intel B660
Board Size / Form Factor Micro-ATX
Supported Memory Type DDR4
DIMM Slots 4
Maximum RAM Capacity 128 GB
Valid DDR4 Speeds DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support No
Expansion Slots (PCIe) 2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty) 2
PCIe x4 (Qty) 0
PCIe x1 (Qty) 1
M.2 Slot Count 3 × M.2
M.2 Device Compatibility 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports 4 × SATA 6Gbps
SATA Express Ports 0
Wired Networking (LAN) N/A
Onboard Wi-Fi Yes
Wi-Fi Standard 6 (802.11ax)
Rear-Panel USB USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers 0
Internal USB 3.2 Gen 2 Headers 1
Internal USB 3.2 Gen 1 Headers 1
Internal USB 2.0 Headers 2
NVIDIA SLI No
AMD CrossFire Yes
RAID Capability Yes
Back-Connect Layout No
Manufacturer Part Number (MPN) PRO B660M-A WIFI DDR4
SKU Code PRO B660M-A WIFI DDR4
GTIN / EAN 824142276167
