MSI PRO B850M-A WiFi

MSI PRO B850M-A WiFi AM5 Micro-ATX DDR5 128 GB Motherboard

MSI Motherboard $179.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB850

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI PRO B850M-A WiFi is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 8600 MT/s (OC).

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The PRO B850M-A WIFI employs a Direct 8 phases CPU power (60A, SPS) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards

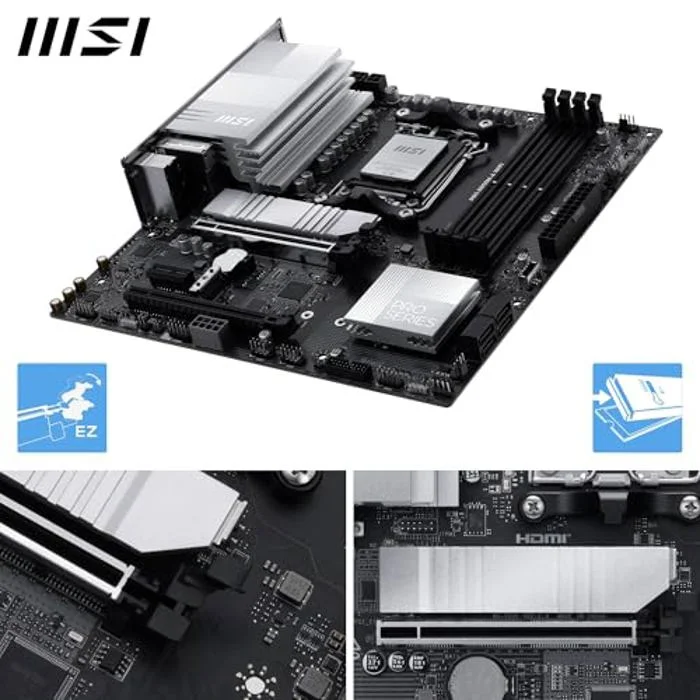

DOUBLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot and 1 x M.2 Gen4 x4 64Gbps slot; Features EZ M.2 Shield Frozr II to prevent thermal throttling and EZ M.2 Clip II for EZ DIY experience

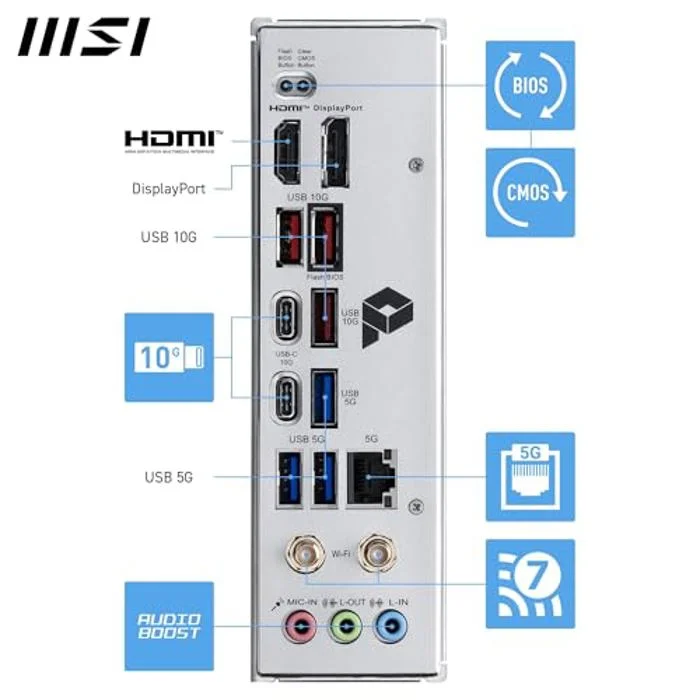

HIGH-SPEED CONNECTIVITY - Network hardware includes a latest Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 10Gbps Type-C and 7.1 HD Audio with Audio Boost

Manufacturer	MSI
Model Number	PRO B850M-A WIFI
Launch Date	June 2025
CPU Socket	AM5
Chipset Model	Intel B850
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-6000 / DDR5-6400 / DDR5-8200 / DDR5-8600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	0 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRO B850M-A WIFI
SKU Code	PRO B850M-A WIFI
GTIN / EAN	824142425459
