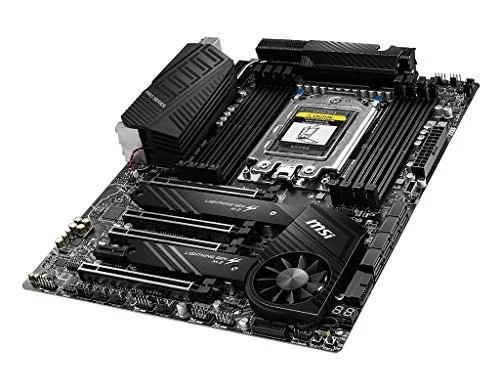

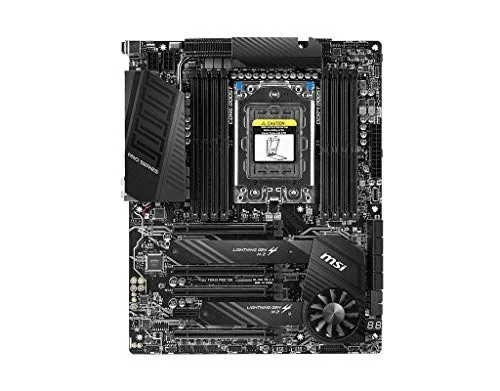

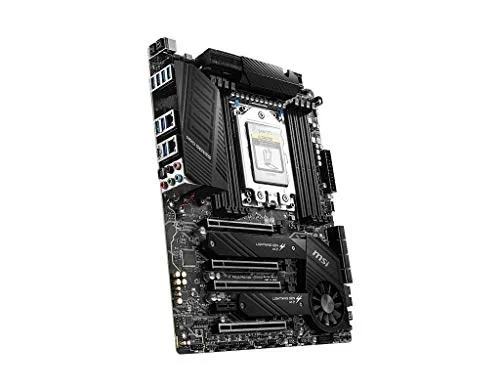

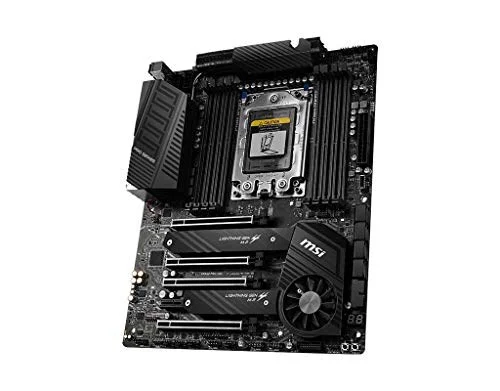

MSI TRX40 PRO 10G

MSI TRX40 PRO 10G sTRX4 ATX DDR4 256 GB Motherboard

MSI Motherboard $485.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTRX4

ChipsetTRX40

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI TRX40 PRO 10G is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).

Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provides Better Performance.
Frozr Heatsink: Designed With The Patented Fan And Double Ball Bearings To Provide Best Performance For Enthusiast Games And Prosumers.
Lightning USB 20G: ASM3242 USB 3.2 Gen2x2 Controller Offers The Fastest USB Speeds With Stability.
Lightning Gen4: The Latest Gen4 PCI-E And M.2 Solution With Up To 64GB/S Bandwidth For Minimum Transfer Speed.
Dual LAN: Dual Premium Network Solution For Both Intranet And Internet, Offering A Smooth Gaming Experience For Effective Network Connection

Manufacturer	MSI
Model Number	TRX40 PRO 10G
Launch Date	November 2019
CPU Socket	sTRX4
Chipset Model	TRX40
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3200 / DDR4-3600 / DDR4-4000 / DDR4-4666 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	4 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

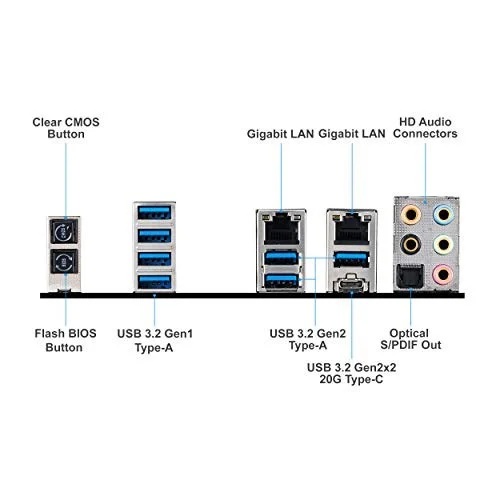

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TRX40 PRO 10G
SKU Code	TRX40 PRO 10G
GTIN / EAN	824142201350
