MSI X299 XPOWER GAMING AC

MSI X299 XPOWER GAMING AC LGA2066 EATX DDR4 128 GB Motherboard

MSI Motherboard $607.45

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI X299 XPOWER GAMING AC is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4133 MT/s (OC).

Supports New Intel Core X-series Processor Family for LGA 2066 socket
Support Quad Channel DDR4-4133(OC)+, Dual Channel DDR4-4500(OC)+
M.2 SHIELD FROZR: strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
3D PRINTING Support: modify and customize your system with 3D printed materials using the special 3D print screws
DUAL GAMING LAN with Wireless support, powered by Intel; the best solution for both Intranet, Internet and wireless demands by offering the lowest latency

Manufacturer	MSI
Model Number	X299 XPOWER GAMING AC
Launch Date	November 2017
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	10 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5

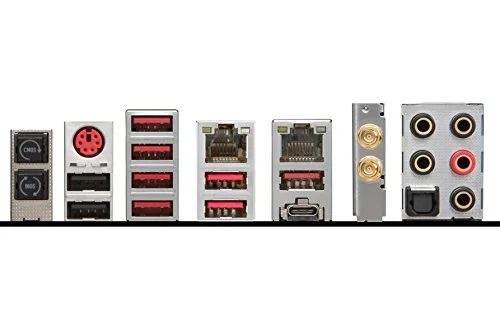

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X299 XPOWER GAMING AC
SKU Code	X299 XPOWER GAMING AC
GTIN / EAN	824142148655
