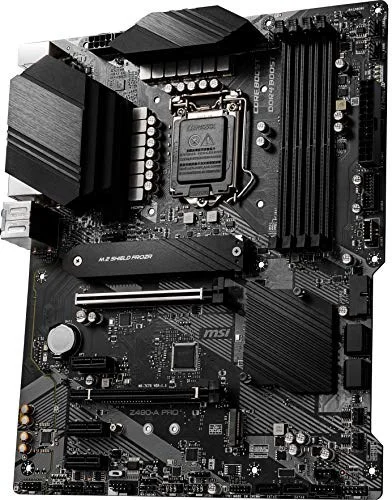

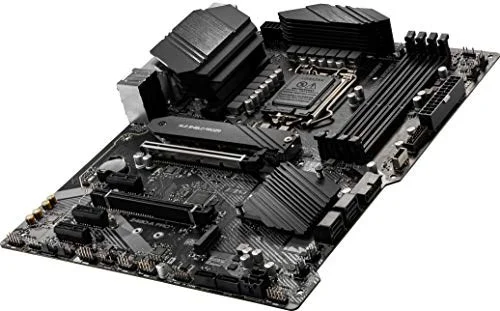

MSI Z490-A PRO

MSI Z490-A PRO LGA1200 ATX DDR4 128 GB Motherboard

MSI Motherboard $109.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI Z490-A PRO is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).

Supports 10Th Generation Intel Core / Pentium Gold / Celeron Processors For LGA 1200 Socket
Supports Dual Channel DDR4 Memory Up To 128GB (4800Mhz)

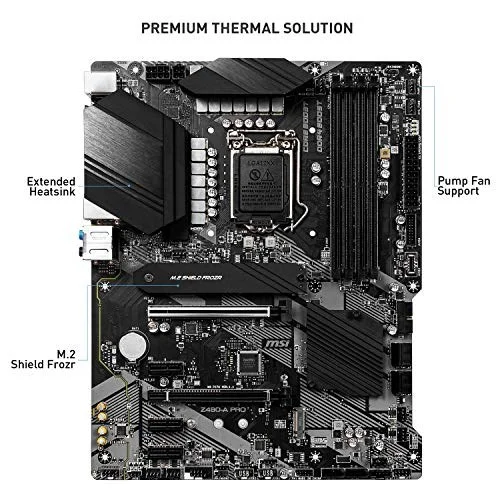

Twin Turbo M.2 With M.2 Shield Frozr Delivers Transfer Speeds Of Up To 32 GB/S For Ultra-Fast Ssds
Core Boost Technology Combines Optimized Power Circuit Layouts, Double CPU Power Connectors, And A Digital Power Design Which Allows For Precise And Steady Current Delivery To The CPU
On-Board 2.5G LAN Plus Gigabit LAN With With Wi-Fi 6 (802.11Ax)

Manufacturer	MSI
Model Number	Z490-A PRO 7C75-003R
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

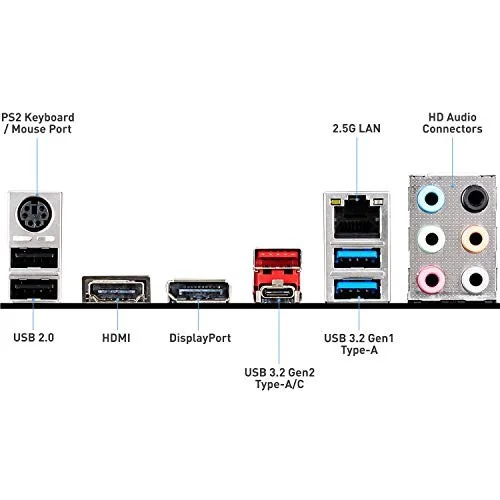

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z490-A PRO
SKU Code	Z490-A PRO
GTIN / EAN	824142212479
