NZXT N5 Z690 Black

NZXT N5 Z690 Black LGA1700 ATX DDR4 128 GB Motherboard

NZXT Motherboard $121.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

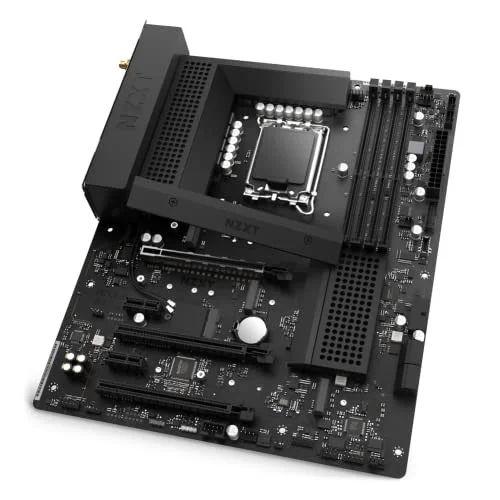

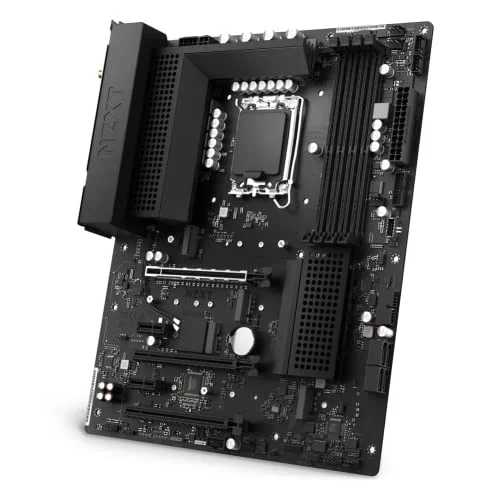

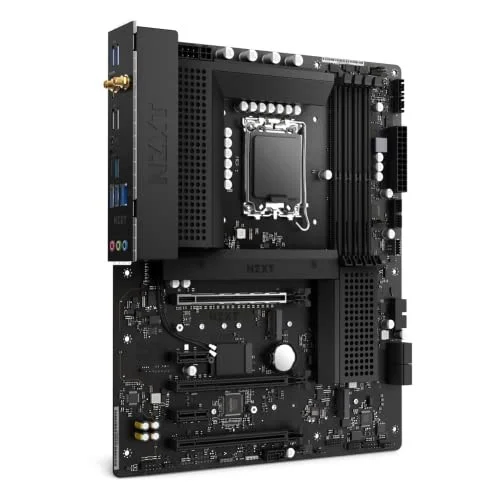

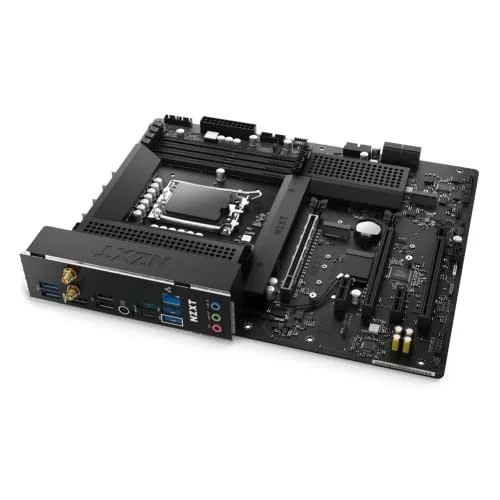

The NZXT N5 Z690 Black is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5133 MT/s (OC).

GAMING MOTHERBOARD: Designed around Intel’s Z690 chipset, the N5 Z690 lays the groundwork for a stunning gaming PC build. Build with the latest components, with support for any accessory.
MINIMALIST DESIGN: The N5 has a clean PCB design with black or white color options. An integrated heat spreader is included for the top-most NVMe drive
BUILDING MADE EASIER: The N5 Z690 includes Wi-Fi 6E connectivity, front panel USB-C and streamlines installation with an integrated rear I/O shield and optimally placed headers for an easier setup process.
NEXT GEN CHIPSET: Take on computing challenges with the Intel Z690 Express Chipset.
SMART CONTROLS: The N5 Z690 allows intuitive control of four RGB lighting channels and six fan channels through CAM, and supports lighting accessories from all manufacturers.

Manufacturer	NZXT
Model Number	N5-Z69XT-B1
Launch Date	June 2022
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5066 / DDR4-5133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	N5-Z69XT-B1
SKU Code	N5-Z69XT-B1
GTIN / EAN	815671016034
