NZXT N7 Z590 N7-Z59XT-B1

NZXT N7 Z590 N7-Z59XT-B1 LGA1200 ATX DDR4 128 GB Motherboard

NZXT Motherboard $167.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

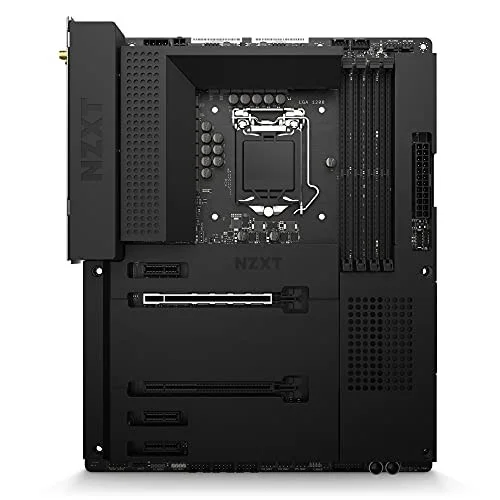

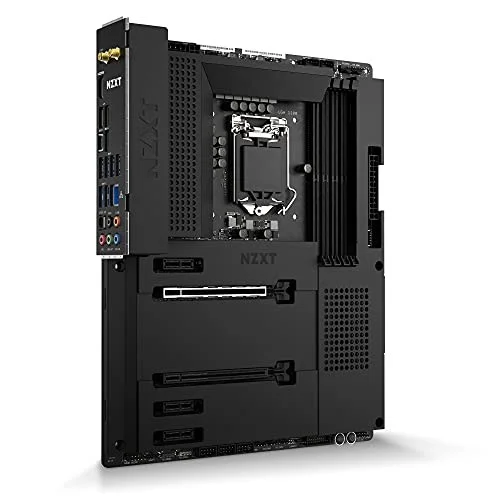

The NZXT N7 Z590 N7-Z59XT-B1 is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4600 MT/s (OC).

SMART CONTROLS: The N7 Z590 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM.
STUNNING CRAFTSMANSHIP: The metal cover is available in white or black for a seamless look that blends into the background of any NZXT H Series case for a clean aesthetic.

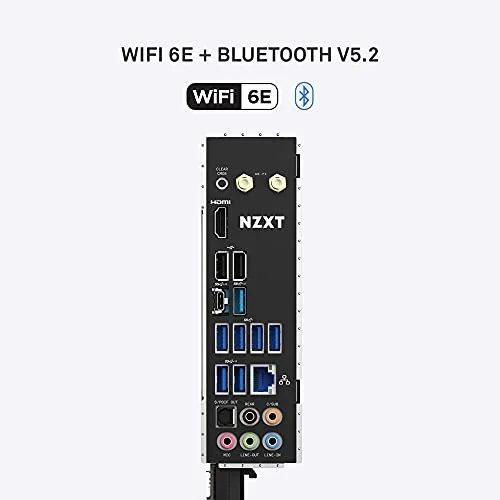

BUILDING MADE EASIER: The N7 Z590 includes WiFi 6E connectivity and utilizes all PCI express lanes available from the CPU and chipset.

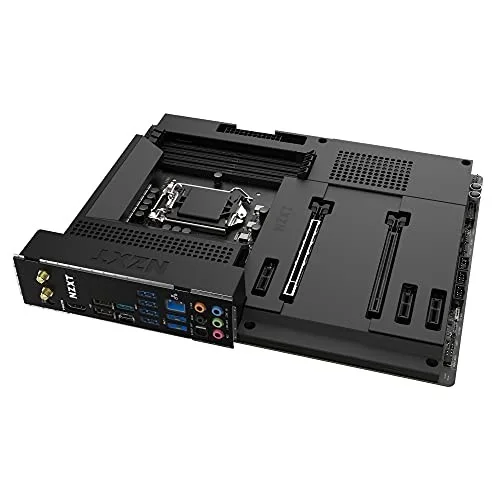

INTEGRATED REAR I/O SHIELD: The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.
COMPATIBILITY: For Intel 11th Generation Core i9/ Core i7/ Core i5/ Core i3 Processors

Manufacturer	NZXT
Model Number	N7-Z59XT-B1
Launch Date	June 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4400 / DDR4-4600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	3
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	N7-Z59XT-B1
SKU Code	N7-Z59XT-B1
GTIN / EAN	815671015228
