NZXT N7 B550 White

NZXT N7 B550 White AM4 ATX DDR4 128 GB Motherboard

NZXT Motherboard $249.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

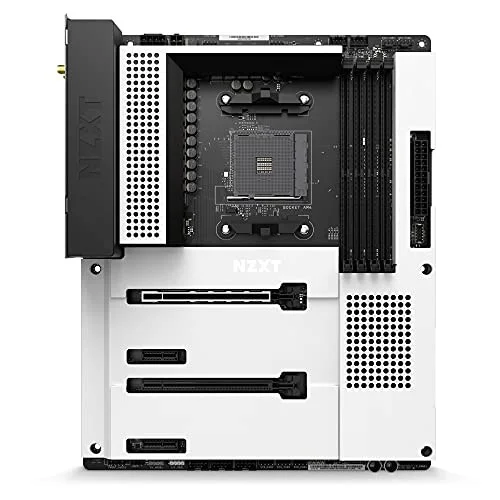

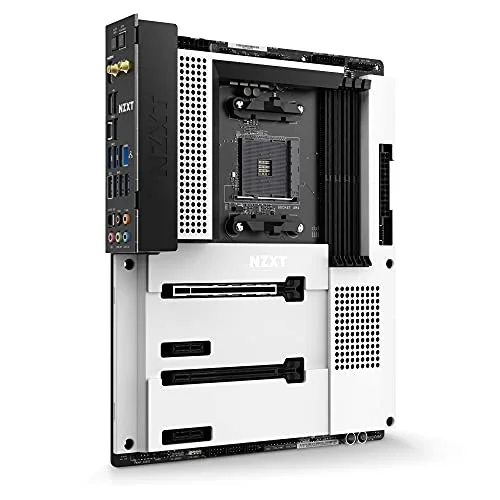

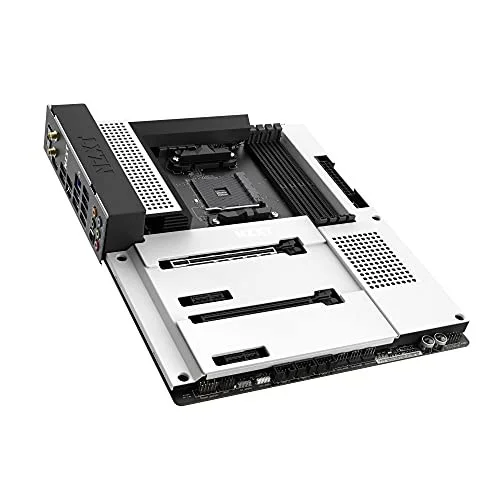

The NZXT N7 B550 White is a ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).

SMART CONTORLS: The N7 B550 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through NZXT CAM.
STUNNING CRAFTSMANSHIP: The metal cover is available in white or black for a seamless look that blends into the background of any NZXT H Series case for a clean aesthetic.
BUILD MADE EASIER: The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.

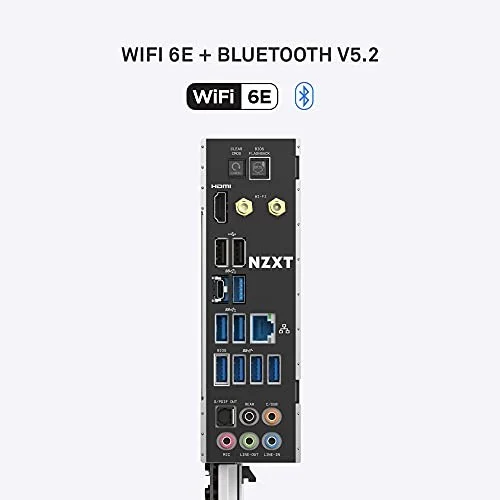

FEATURES: The N7 B550 includes a front panel USB 3.2 Gen 2 Type-C, WiFi 6 connectivity, and utilizes all PCI express lanes available from the CPU and chipset.
COMPATIBILITY: Supports AMD Socket AM4 Ryzen Processors (3000, 4000, and 5000 Series Processors

Manufacturer	NZXT
Model Number	N7-B55XT-W1
Launch Date	March 2021
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4666 / DDR4-4733 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	3
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	N7-B55XT-W1
SKU Code	N7-B55XT-W1
GTIN / EAN	815671015235
