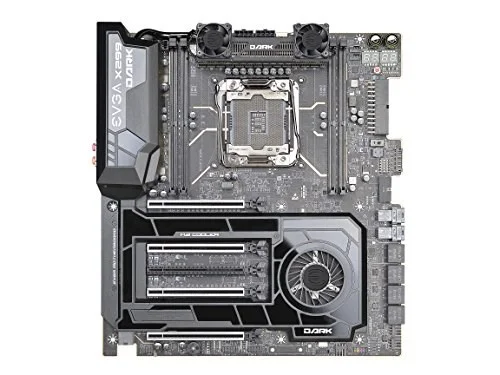

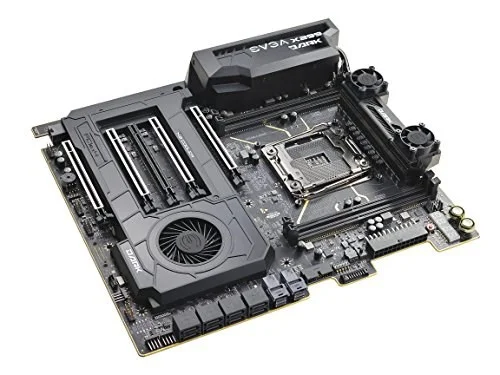

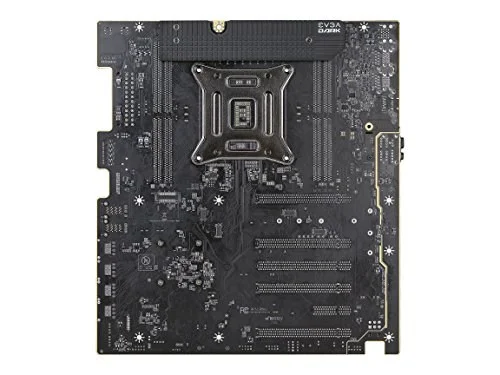

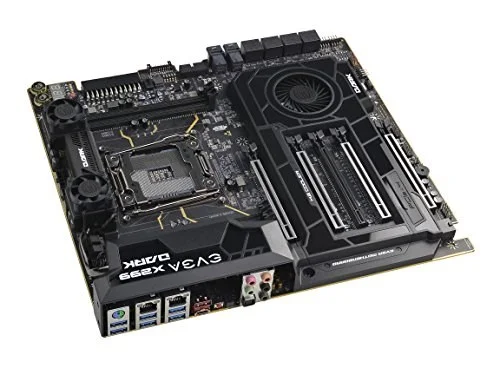

EVGA X299 Dark

EVGA X299 Dark LGA2066 EATX DDR4 64 GB Motherboard

EVGA Motherboard $739.46

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The EVGA X299 Dark is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4133 MT/s (OC).

Supports Intel Core 7th Generation Processor Family for 2066 socket
EATX Form Factor
4 DIMM Quad Channel DDR4 up to 64GB 3600MHz+ Sky lake-X, and 32GB 4133MHz+ Kaby Lake-X
4 USB 2.0 Ports (2 internal headers) 8 USB 3.0 Ports (6 rear panel, 2 from 1 internal header) 2 USB 3.1 Ports (1x Type-A, 1x Type-C)
8 SATA 3/6 Gbit/s )6 from X299 PCH/2 from AS Media ASM1061), 1 M.2 Key-M 110mm (up to 32Gbps), 1 M.2 Key-M 80mm (up to 32Gbps), 1 M.2 Key-E 32mm, 2 U.2 Port

Manufacturer	EVGA
Model Number	151-SX-E299-KR
Launch Date	N/A
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	5 × PCIe x16
PCIe x16 (Qty)	5
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	151-SX-E299-KR
SKU Code	151-SX-E299-KR
GTIN / EAN	843368049508
