EVGA Z390 FTW

EVGA Z390 FTW LGA1151 ATX DDR4 64 GB Motherboard

EVGA Motherboard $229.88

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

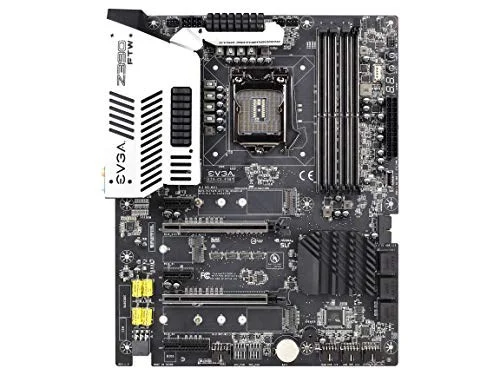

The EVGA Z390 FTW is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4133 MT/s (OC).

Intel Z390 Chipset, supports Intel Core 8th & 9Thgeneration Processor Family for LGA1151 Socket
Atx Form Factor
4 DIMM Dual-Channel up to 64GB 4133+ MHz
6 USB 2.0 Ports (2x rear panel, 4x from 2 internal headers), 5 USB 3.1 Gen2 ports (4x rear panel Type-A, 1Xtype-c from internal header)
6 SATA, 2 M.2 Key-M 80mm and 110mm up to 32Gbps, 1 M.2 Key-E 32mm, 1x Intel i219 Gigabit NIC (10/100/1000)
Get grip game + EVGA vehicle skin w/ Purchase, redeemed at EVGA website, while supplies last

Manufacturer	EVGA
Model Number	123-CS-E397-KR
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2230 - E Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	123-CS-E397-KR
SKU Code	123-CS-E397-KR
GTIN / EAN	843368053376
