EVGA X299 MICRO ATX 2

EVGA X299 MICRO ATX 2 LGA2066 Micro-ATX DDR4 64 GB Motherboard

EVGA Motherboard $330.58

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

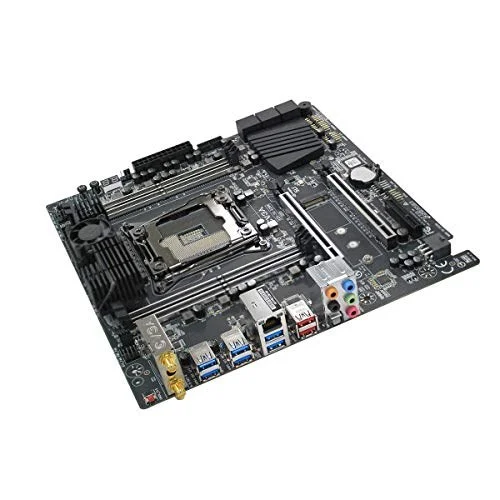

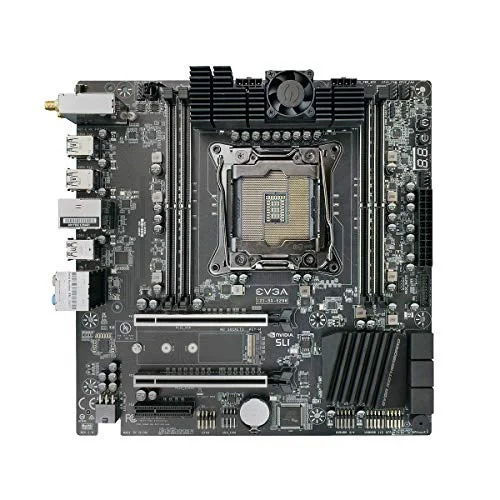

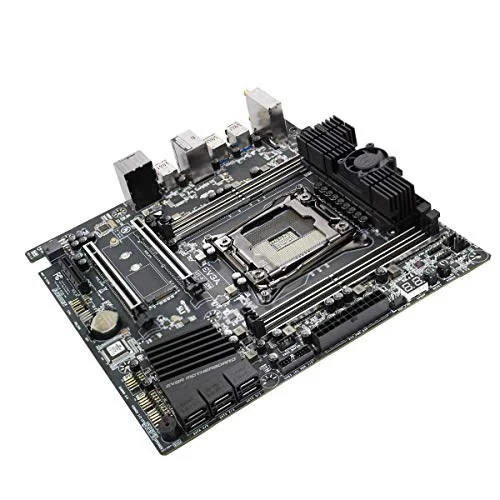

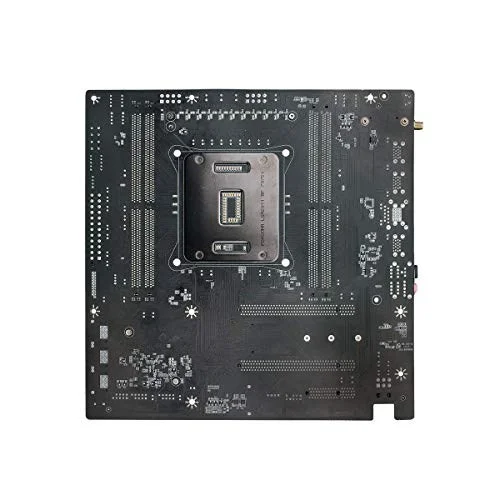

The EVGA X299 MICRO ATX 2 is a Micro-ATX motherboard for LGA2066. It supports DDR4 memory up to 4133 MT/s (OC).

Supports Intel Core X-Series Cascade Lake-X And Skylake-X Processors For 2066 Socket
Matx Form Factor + Metal-Reinforced Pcie And DIMM Slots
32GB DIMM Support - Quad-Channel DDR4 Up To 128GB 4000Mhz+ Cascade Lake-X/Skylake-X
New EVGA GUI BIOS Features In-Bios Stress Test And OC Robot To Auto-Overclock Your CPU And Set Per Core Clock Speeds And Voltages
Highly-Efficient 14 Phase Digital VRM With Actively-Cooled VRM Heatsink
4 USB 2. 0 Ports (2 Internal Headers), 8 USB 3. 1 Gen1 Ports (6 Rear Panel, 2 From 1 Internal Header), 2 USB 3. 1 Gen2 Ports (Type-A)
6 SATA 6 Gb/S Ports, 1 M. 2 Key-M 80Mm (Up To 32Gbps), 1 M. 2 Key-E 32Mm
New Integrated EVGA Wi-Fi/BT Module + Flash BIOS Without A CPU
Get Grip Game + EVGA Vehicle Skin W/ Purchase, Redeemed At EVGA Website, While Supplies Last

Manufacturer	EVGA
Model Number	121-SX-E296-KR
Launch Date	December 2018
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	121-SX-E296-KR
SKU Code	121-SX-E296-KR
GTIN / EAN	843368052744
