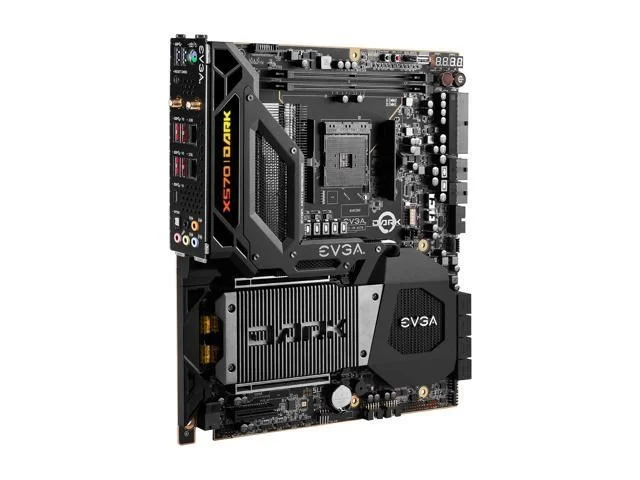

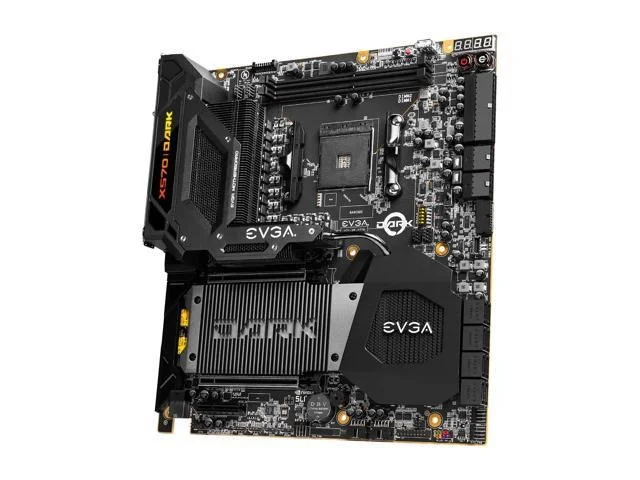

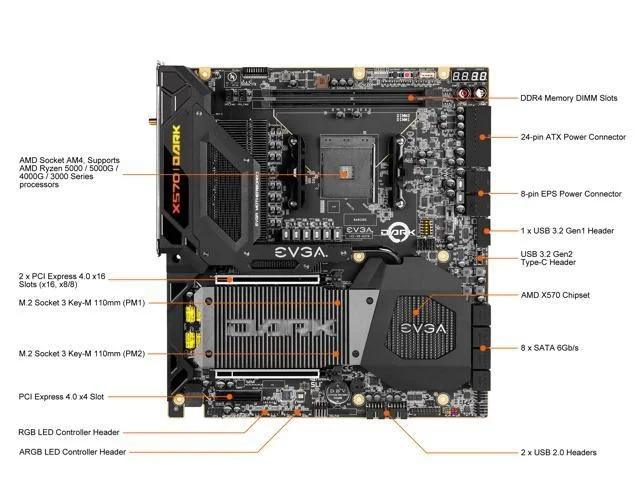

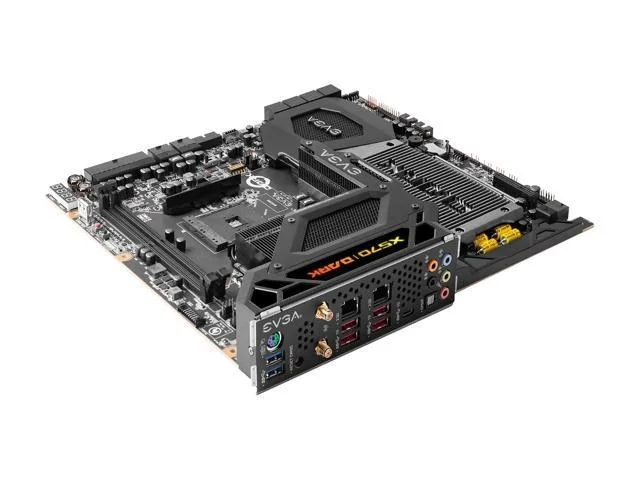

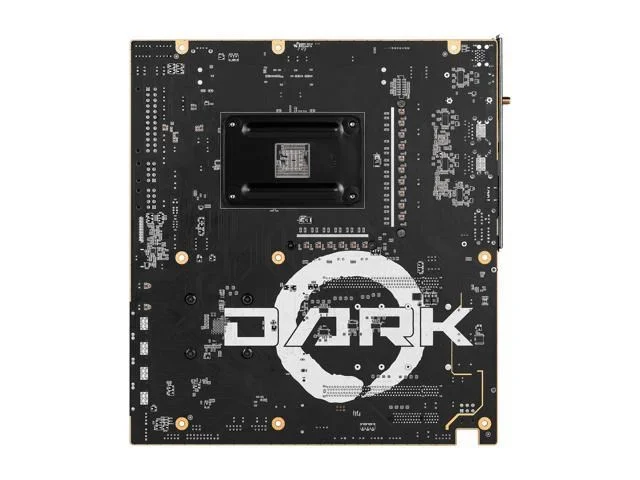

EVGA X570 DARK

EVGA X570 DARK AM4 EATX DDR4 64 GB Motherboard

EVGA Motherboard $196.79

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The EVGA X570 DARK is a EATX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).

EVGA X570 DARK, 121-VR-A579-KR, AM4, AMD X570, PCIe Gen4, SATA 6Gb/s, 2.5Gb/s LAN, Wi-Fi 6/BT5.2, USB 3.2 Gen2, M.2, EATX, AMD Motherboard Number of Memory Slots: 2×288pin Memory Standard: DDR4 4800+ (OC) PCI Express x4: 1 x PCIe 4.0 x4 Audio Chipset: Realtek 1220 Audio Channels: 7.1 Channels Max LAN Speed: Dual 10/100/1000/2500Mbps Maximum Memory Supported: 64GB Channel Supported: Dual Channel

Manufacturer	EVGA
Model Number	121-VR-A579-KR X570 DARK
Launch Date	N/A
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4066 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4333 / DDR4-4400 / DDR4-4500 / DDR4-4533 / DDR4-4600 / DDR4-4666 / DDR4-4700 / DDR4-4733 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	121-VR-A579-KR
SKU Code	121-VR-A579-KR
GTIN / EAN	843368071745
