EVGA Z490 Dark K|NGP|N Edition

EVGA Z490 Dark K|NGP|N Edition LGA1200 EATX DDR4 64 GB Motherboard

EVGA Motherboard $869.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

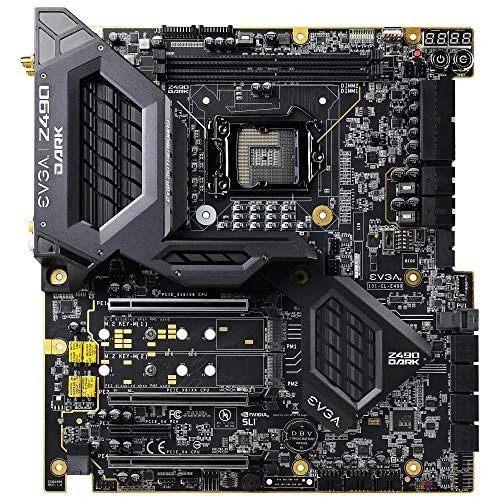

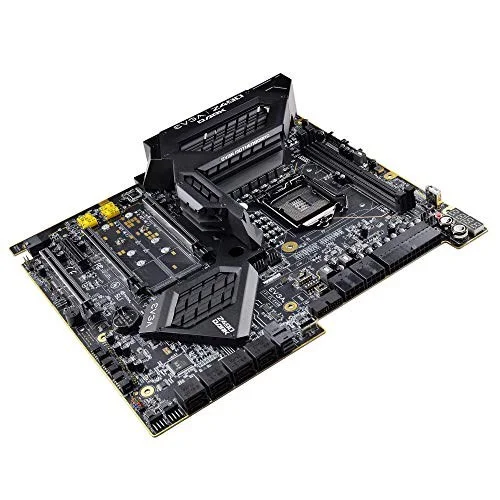

The EVGA Z490 Dark K|NGP|N Edition is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).

Intel Z490 Chipset, Supports Intel Core 10Th Generation Processor Family For LGA1200 Socket
Revolutionary Design, Featuring Right-Angle Power Connectors On The Same Side To Enhance Both Cable-Management And Cooling
E-ATX Form Factor, 10 Layer PCB, 18 Phase PWM, Metal Reinforced Pcie Slots, Supports EVGA ELEET X1, NVIDIA SLI Ready
2 DIMM Dual-Channel Supports Up To 64GB 5000+ Mhz, 7 USB 3. 2 Gen2 Ports (5X Type A, 1X Type-C, 1X Type-C Header)
8 SATA 6Gb/S, 2X M. 2 Key-M 110Mm, 1X M. 2 Key-E 32Mm With Installed Wifi 6/BT 5. 1, 1X U. 2 Nvme Port, 1X Intel 2. 5 Gigabit NIC, 1X Intel Gigabit NIC

Manufacturer	EVGA
Model Number	131-CL-E499-KP
Launch Date	December 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3000 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	3
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	131-CL-E499-KP
SKU Code	131-CL-E499-KP
GTIN / EAN	843368067618
