EVGA Z590 Dark

EVGA Z590 Dark LGA1200 EATX DDR4 64 GB Motherboard

EVGA Motherboard $539.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

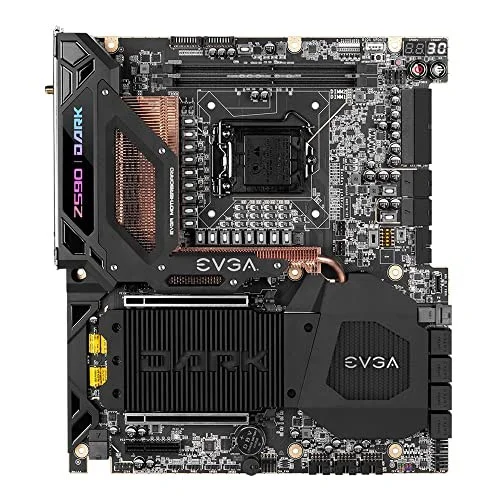

The EVGA Z590 Dark is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).

Intel Z590 Chipset, Supports Intel Core 11th/10th generation processor families for LGA1200 socket
PCIe Gen4, M.2 Gen4, ATX Form Factor, 10 Layer PCB, 21 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover
2 DIMM Dual-Channel supports up to 64GB 5333+ MHz, 6 USB 3.2 Gen2 Ports (4x Type A, 1x Type-C Gen2x2, 1x Type-C Header)
8 SATA 6Gb/s, 3x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed WiFi 6/BT 5.2, HDMI 2.0a+DP 1.4 outputs, 2x Intel 2.5 Gb/s NICs
Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1

Manufacturer	EVGA
Model Number	121-RL-E599-KR
Launch Date	September 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-5333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	121-RL-E599-KR
SKU Code	121-RL-E599-KR
GTIN / EAN	843368070410
