EVGA Z790 DARK K|NGP|N

EVGA Z790 DARK K|NGP|N LGA1700 EATX DDR5 64 GB Motherboard

EVGA Motherboard $802.79

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorEATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

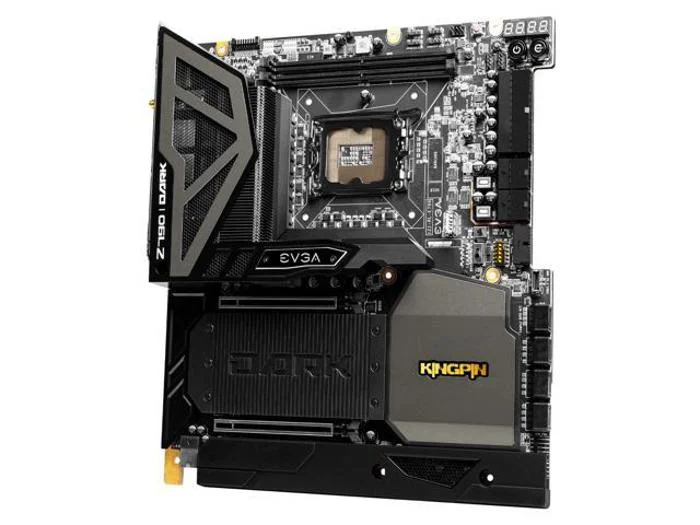

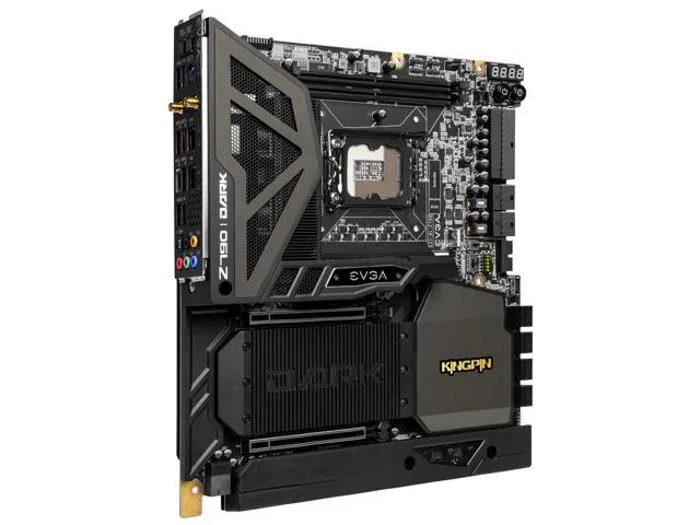

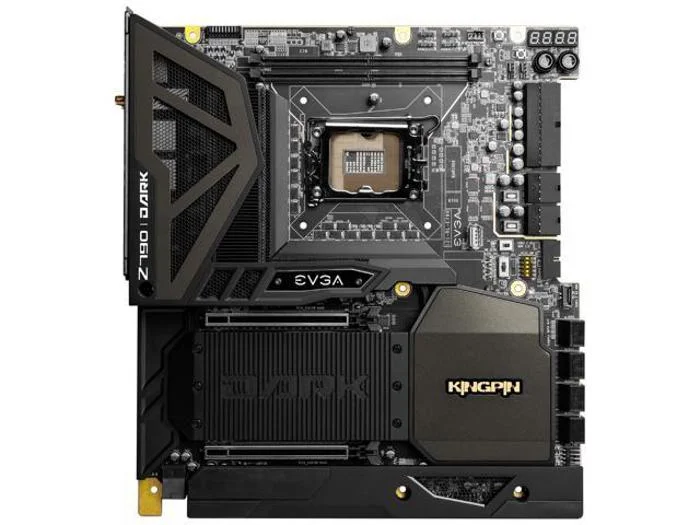

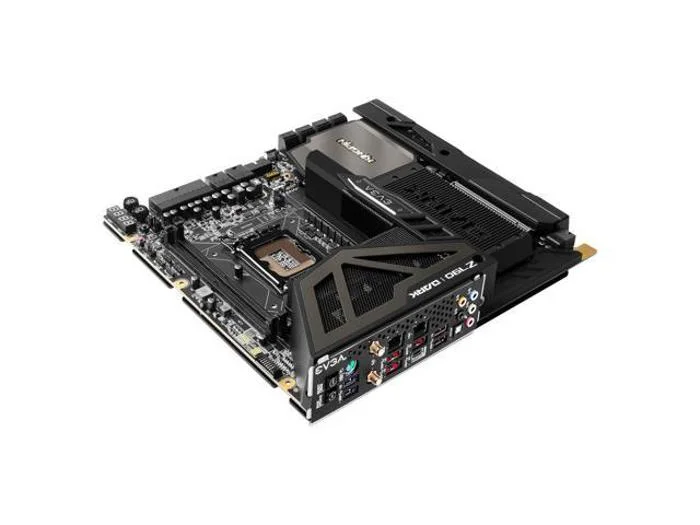

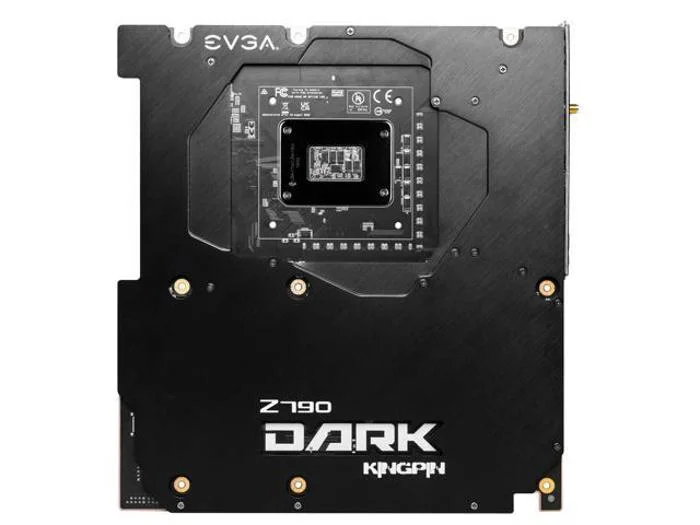

The EVGA Z790 DARK K|NGP|N is a EATX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).

EVGA Z790 DARK K|NGP|N, 121-RL-E799-KR, LGA 1700, Intel Z790, PCIe Gen5, SATA 6Gb/s, 10Gb/s LAN, WiFi6E/BT5.2, USB 3.2 Gen2x2, M.2, EATX, Intel Motherboard Memory Standard: up to 8000MHz+(OC) Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: 2x PCIe 5.0 x16 (x16/x8) Max LAN Speed: 10Gbps + 10/100/1000/2500Mbps CPU Type: Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) Maximum Memory Supported: 64GB Channel Supported: Dual Channel

Manufacturer	EVGA
Model Number	121-RL-E799-KR
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	EATX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	121-RL-E799-KR
SKU Code	121-RL-E799-KR
GTIN / EAN	843368076931
