NZXT N9 X870E

NZXT N9 X870E AM5 ATX DDR5 192 GB Motherboard

NZXT Motherboard $479.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX870E

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The NZXT N9 X870E is a ATX motherboard for AM5. It supports DDR5 memory up to 8200 MT/s (OC).

AMD AM5 SOCKET - Ready for AMD Ryzen 9000, 8000, and 7000 series desktop processors.

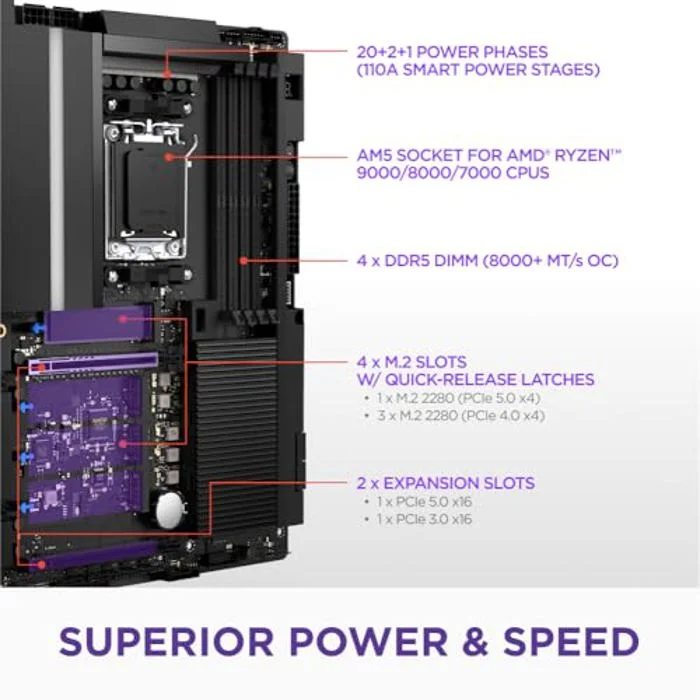

SUPERIOR POWER - 20+2+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.

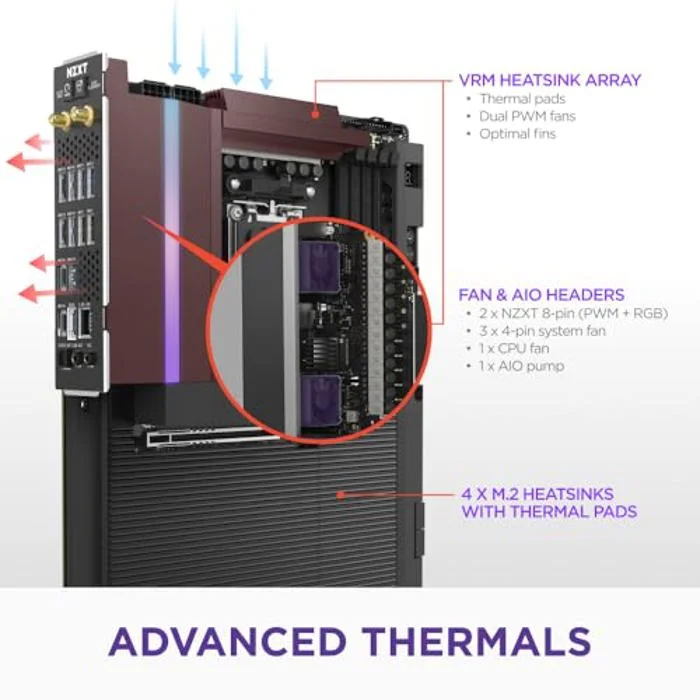

ADVANCED COOLING - VRM heatsink array with thermal pads, dual PWM fans, and four dedicated M.2 heatsinks.
PCIe 5.0 EXPANSION - One PCIe 5.0 x16 slot for next-gen GPUs and one PCIe 3.0 x16 slot for additional high-speed expansion cards.
DDR5 MEMORY - Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
HIGH-SPEED STORAGE - Four M.2 slots, including one PCIe 5.0 and three PCIe 4.0, deliver ultra-fast storage speeds and load times-all with quick-release latches.
NEXT-GEN CONNECTIVITY - USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.

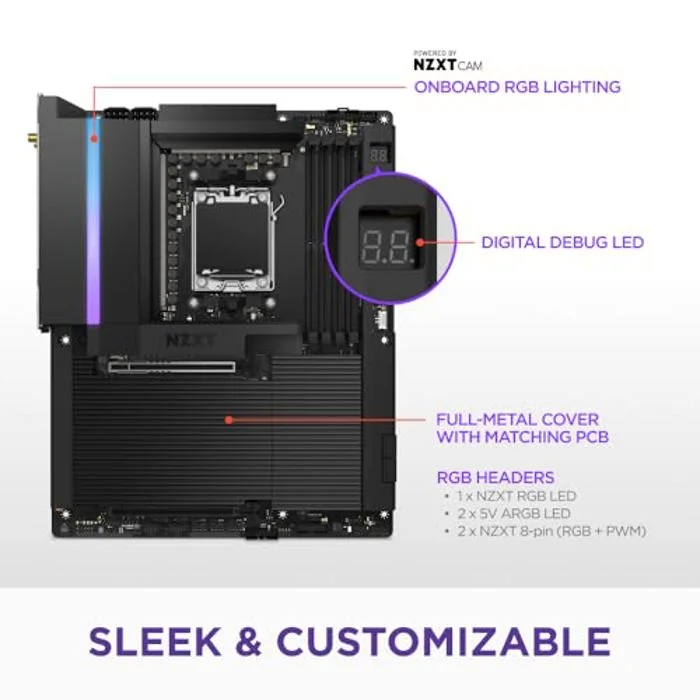

SLEEK & STYLISH - A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.

Manufacturer	NZXT
Model Number	N9-X87XT-B1
Launch Date	March 2025
CPU Socket	AM5
Chipset Model	Intel X870E
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	0 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)

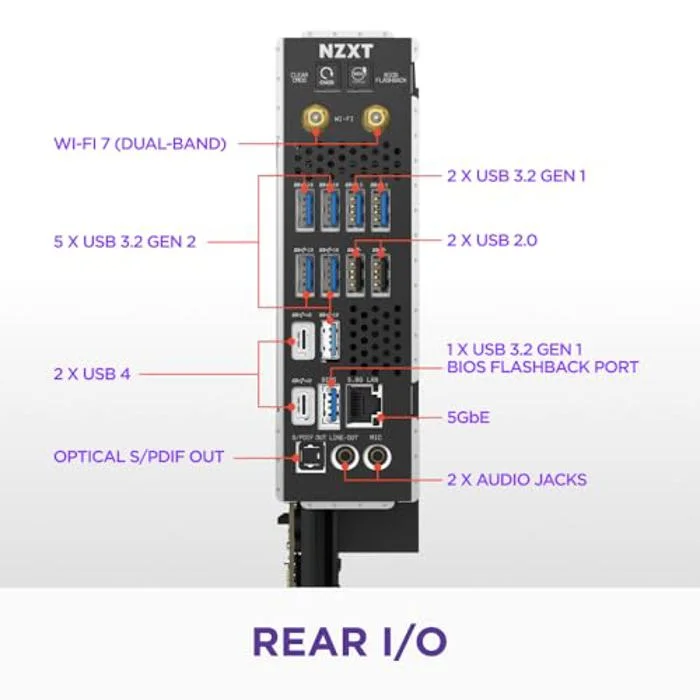

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	N9-X87XT-B1
SKU Code	N9-X87XT-B1
GTIN / EAN	810074847308
