Product Overview

NZXT N9 Z890 White

NZXT N9 Z890 White LGA1851 ATX DDR5 192 GB Motherboard

NZXT Motherboard $349.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851
ChipsetZ890
Form FactorATX
MemoryDDR5
Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller Shipping Price
-
-
-
N/A
-
N/A

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The NZXT N9 Z890 White is a ATX motherboard for LGA1851. It supports DDR5 memory up to 8600 MT/s (OC).

  • INTEL LGA 1851 SOCKET- Ready for Intel Core Ultra (Series 2) processors, featuring an RL-ILM design that enhances thermal contact and reduces mounting pressure

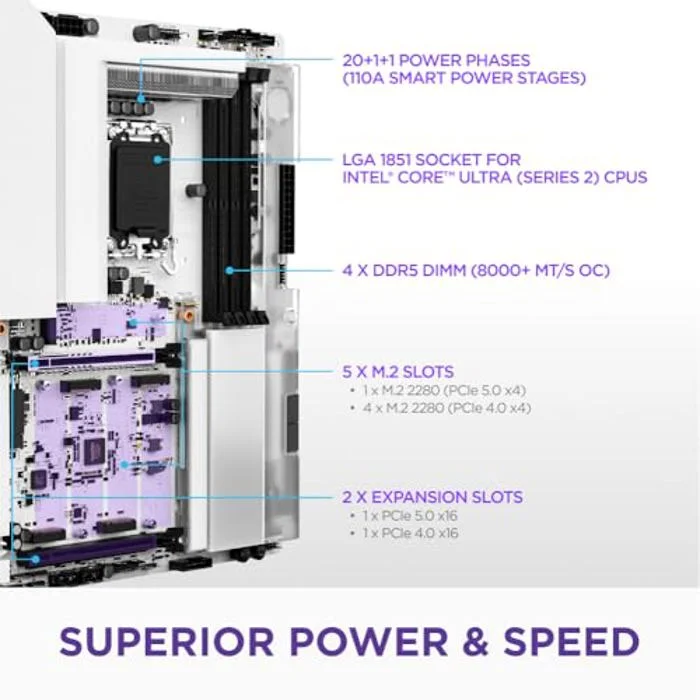

  • SUPERIOR POWER - 20+1+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery

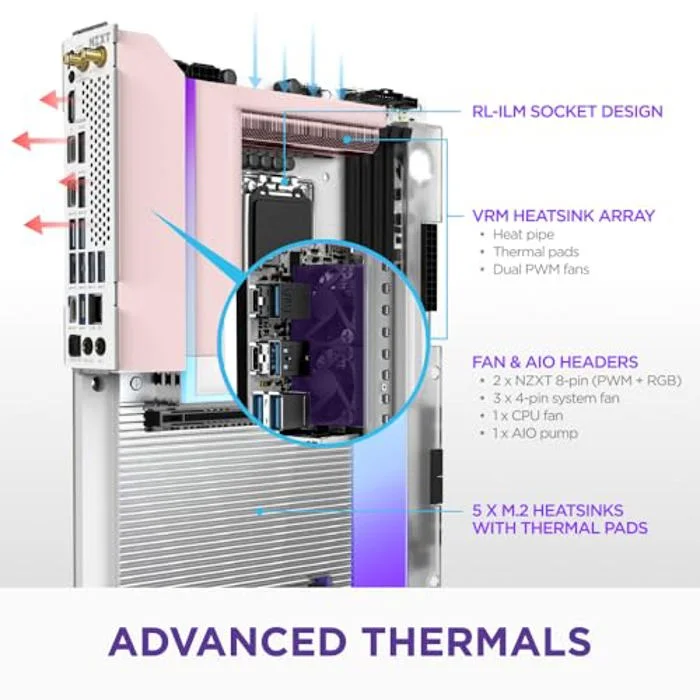

  • ADVANCED COOLING - VRM heatsink array with fin stack, heat pipe, thermal pads, and dual PWM fans, plus dedicated M.2 heatsinks
  • PCIe 5.0 EXPANSION - PCIe 5.0 x16 slot delivers maximum bandwidth for next-gen GPUs, while a PCIe 4.0 slot supports high-speed add-ons like capture cards and sound cards
  • HIGH-SPEED STORAGE - One PCIe 5.0 and four PCIe 4.0 M.2 slots provide ultra-fast storage speeds for minimal load times and maximum efficiency
  • DDR5 MEMORY - Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness

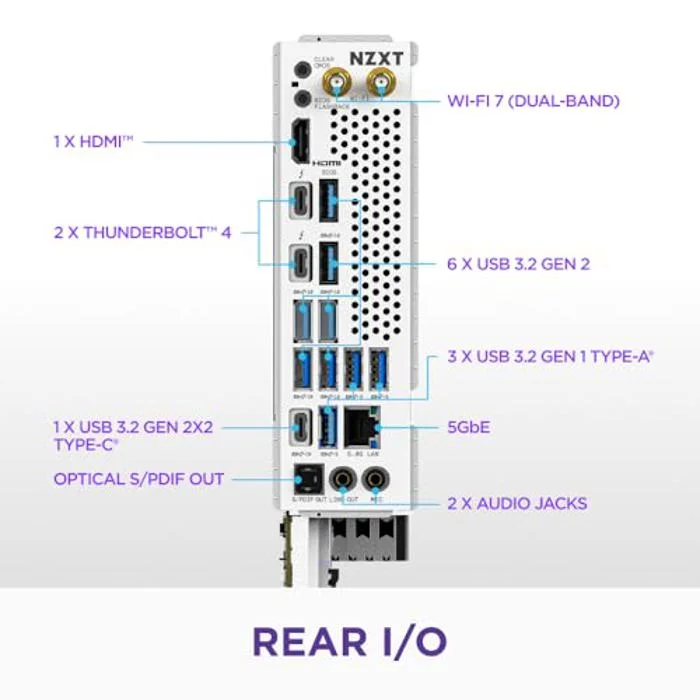

  • NEXT-GEN CONNECTIVITY - Thunderbolt 4, Wi-Fi 7 (320 MHz), and 5GbE deliver blazing-fast data transfers and ultra-low latency networking

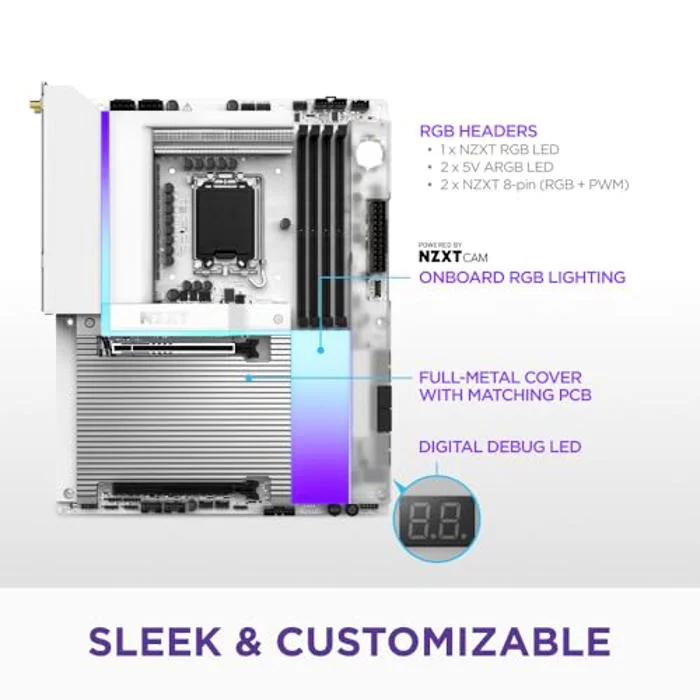

  • SLEEK & STYLISH - A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.

Specifications

Manufacturer NZXT
Model Number N9-Z89XT-W1
Launch Date March 2025
CPU Socket LGA1851
Chipset Model Intel Z890
Board Size / Form Factor ATX
Supported Memory Type DDR5
DIMM Slots 4
Maximum RAM Capacity 192 GB
Valid DDR4 Speeds DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 (OC)
ECC Memory Support No
Expansion Slots (PCIe) 2 × PCIe x16
PCIe x16 (Qty) 2
PCIe x4 (Qty) 0
PCIe x1 (Qty) 0
M.2 Slot Count 6 × M.2
M.2 Device Compatibility 2280 - M Key, 2280 - M Key, 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports 0 × SATA 6Gbps
SATA Express Ports 0
Wired Networking (LAN) N/A
Onboard Wi-Fi Yes
Wi-Fi Standard 7 (802.11be)
Rear-Panel USB USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers 1
Internal USB 3.2 Gen 2 Headers 0
Internal USB 3.2 Gen 1 Headers 2
Internal USB 2.0 Headers 2
NVIDIA SLI No
AMD CrossFire No
RAID Capability No
Back-Connect Layout No
Manufacturer Part Number (MPN) N9-Z89XT-W1
SKU Code N9-Z89XT-W1
GTIN / EAN 810074846240
